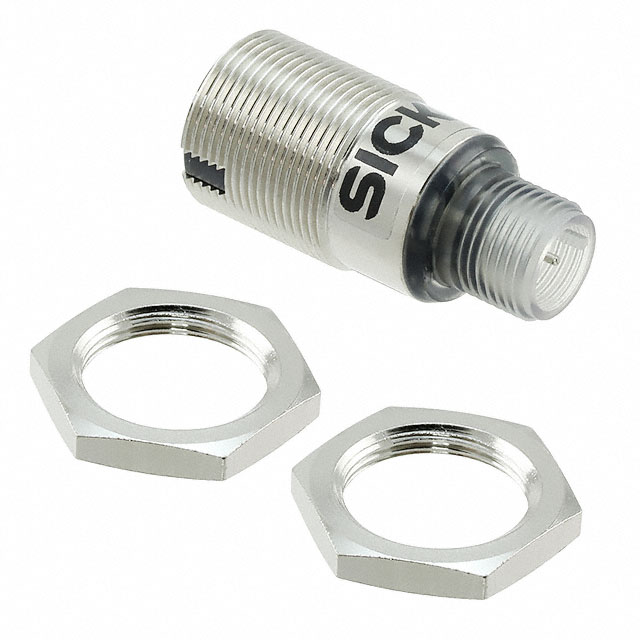

1058199

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 6M PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1058199

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 6M PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1058199

Connection Method	Connector, 3POS, M12
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	6 m
Sensing Distance [Max]	236.22 in
Sensing Distance [Min]	60 mm
Sensing Distance [Min]	2.362 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

GRL18S Series

Part	Ingress Protection	Output Configuration	Connection Method	Response Time	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Cable Length	Cable Length
SICK, Inc. 1064159	IP67	PNP	Connector M12	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC
SICK, Inc. 1058199	IP67	PNP - Dark-ON/Light-ON - Selectable	3POS Connector M12	500 µs	Red LED	-25 °C	55 °C		6 m	60 mm		Retroreflective	30 VDC	10 VDC	2.362 "	236.22 in
SICK, Inc. 1064161	IP67	PNP	Connector M12	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC
SICK, Inc. 1059541	IP67	PNP	Cable	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC			78.74 in	2 m
SICK, Inc. 1064160	IP67	PNP	Connector M12	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC
SICK, Inc. 1069585	IP67	NPN	Cable	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC			78.74 in	2 m
SICK, Inc. GRL18S-K2436	IP67	PNP - Dark-ON/Light-ON	Connector M12		Red LED	-25 °C	55 °C		7.2 m	300 mm		Retroreflective	30 VDC	10 VDC	11.811 in	283.465 in
SICK, Inc. 1069072	IP67	PNP	Connector M12	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC
SICK, Inc. 1064148	IP67	PNP	Connector M12	500 µs	RED (650nm)	-25 °C	55 °C	283.465 "	7.2 m	30 mm	1.181 "	Retroreflective	30 VDC	10 VDC
SICK, Inc. 1064162	IP67	PNP - Dark-ON/Light-ON	Connector M12		Red LED	-25 °C	55 °C		7.2 m	300 mm		Retroreflective	30 VDC	10 VDC	11.811 in	283.465 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 122.72
		10	$ 102.26
		100	$ 95.44

Description

General part information

GRL18S Series

Retroreflective Optical Sensor 2.362" ~ 236.220" (60mm ~ 6m) PNP - Dark-ON/Light-ON - Selectable
