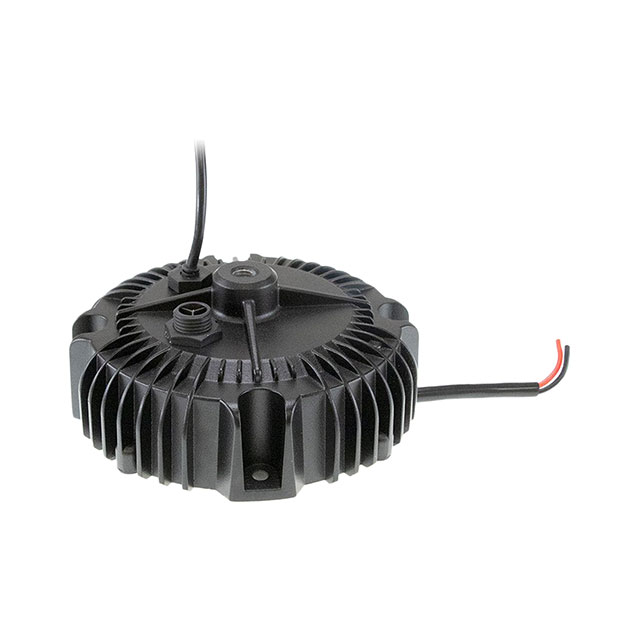

XBG-160-A

Active

MEAN WELL USA Inc.

O/P +34~56V3.3A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

O/P +34~56V3.3A

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Efficiency	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Ratings	Voltage - Isolation	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Topology	Dimming
MEAN WELL USA Inc. XBG-160-A	160 W	305 VAC	CB CCC CE cURus ENEC	Chassis Mount	93 %	Constant Current	OCP OTP OVP SCP	90 °C	-40 °C	1	IP67	3750 V	151.5 mm	2.36 in	5.96 in	60 mm	90 VAC	Wire Leads	56 V	34 V	3.3 A	AC DC Converter
MEAN WELL USA Inc. XBG-160-AB-C	160 W	305 VAC	CB CCC CE cURus ENEC	Chassis Mount	93 %	Constant Current	OCP OTP OVP SCP	90 °C	-40 °C	1	IP67	3750 V	151.5 mm	2.36 in	5.96 in	60 mm	90 VAC	Wire Leads	56 V	34 V	3.3 A	AC DC Converter	Analog PWM
MEAN WELL USA Inc. XBG-160-A-C	160 W	305 VAC	CB CCC CE cURus ENEC	Chassis Mount	93 %	Constant Current	OCP OTP OVP SCP	90 °C	-40 °C	1	IP67	3750 V	151.5 mm	2.36 in	5.96 in	60 mm	90 VAC	Wire Leads	56 V	34 V	3.3 A	AC DC Converter
MEAN WELL USA Inc. XBG-160-AB	160 W	305 VAC	CB CCC CE cURus ENEC	Chassis Mount	93 %	Constant Current	OCP OTP OVP SCP	90 °C	-40 °C	1	IP67	3750 V	151.5 mm	2.36 in	5.96 in	60 mm	90 VAC	Wire Leads	56 V	34 V	3.3 A	AC DC Converter	Analog PWM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3A 34 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
