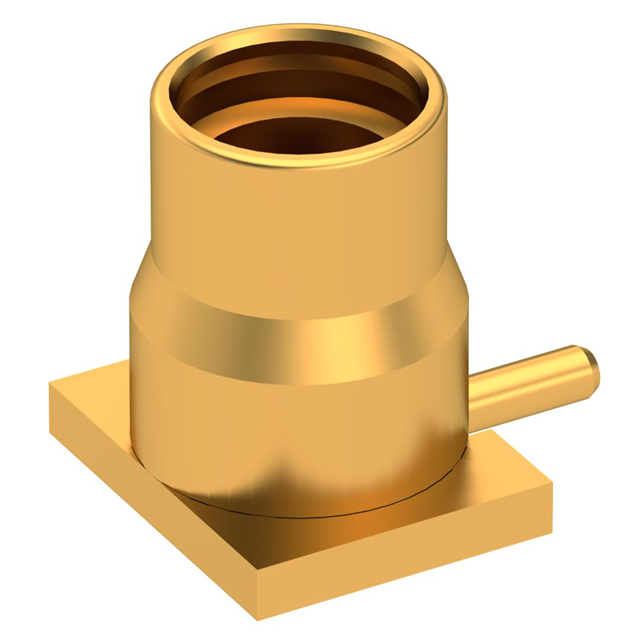

R110427820

Active

Radiall USA, Inc.

MMCX / STRAIGHT JACK RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

R110427820

Active

Radiall USA, Inc.

MMCX / STRAIGHT JACK RECEPTACLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R110427820

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

R11042 Series

Part	Mating Cycles	Contact Termination	Impedance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Dielectric Material	Number of Ports	Voltage Rating	Housing Color	Body Material	Center Contact Plating	Shield Termination	Body Finish	Fastening Type	Frequency - Max [Max]	Connector Style	Connector Type
Radiall USA, Inc. R110427820	500	Solder	50 Ohms	Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	250 VDC	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Receptacle
Radiall USA, Inc. R110426000W	500	Solder	50 Ohms	Through Hole	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	170 V	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Jack
Radiall USA, Inc. R110426000	500	Solder	50 Ohms	Through Hole	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	170 V	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Jack
Radiall USA, Inc. R110427830	500	Solder	50 Ohms	Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	250 VDC	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Receptacle
Radiall USA, Inc. R110427810W		Solder	50 Ohms	Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	170 V	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Jack
Radiall USA, Inc. R110427830W	500	Solder	50 Ohms	Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	250 VDC	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Receptacle
Radiall USA, Inc. R110422100W	500	Solder	50 Ohms	Board Edge Cutout Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	250 VDC	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Jack
Radiall USA, Inc. R110422100	500	Solder	50 Ohms	Board Edge Cutout Surface Mount	155 °C	-55 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	250 VDC	Gold	Brass	Gold	Solder	Gold	Snap-On	6000 MHz	MMCX	Female Socket Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 6.00

Description

General part information

R11042 Series

MMCX Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
