Q-2C0340003.25M

Active

Amphenol Custom Cable

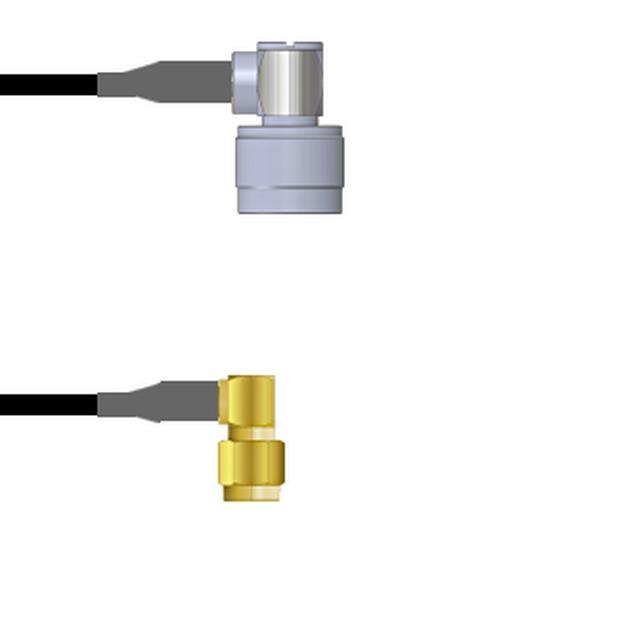

CBL ASSY SMA-NTYPE PLG-PL 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C0340003.25M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLG-PL 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C0340003.25M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2C0340 Series

Part	Cable Type	1st Connector Mounting Type	1st Contact Gender	Color	Length	Length	Length	2nd Connector	Overall Impedance	Frequency - Max [Max]	2nd Connector Mounting Type	Features	Style	1st Connector	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2C03400031.5M	RG-174	Free Hanging (In-Line)	Male	Black	59.1 in	4.9 ft	1.5 m	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340003.25M	RG-174	Free Hanging (In-Line)	Male	Black				N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2C0340005006i	RG-316	Free Hanging (In-Line)	Male	Copper	6 in		152.4 mm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340003048i	RG-174	Free Hanging (In-Line)	Male	Black	48 in	4 ft	1200 mm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340003018i	RG-174	Free Hanging (In-Line)	Male	Black				N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C0340003012i	RG-174	Free Hanging (In-Line)	Male	Black	12 "		304.8 mm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340005012i	RG-316	Free Hanging (In-Line)	Male	Copper	12 "		304.8 mm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340005003M	RG-316	Free Hanging (In-Line)	Male	Copper	118.1 in	9.8 '	3 m	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340003036i	RG-174	Free Hanging (In-Line)	Male	Black	36 in		91.44 cm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male
Amphenol Custom Cable Q-2C0340005009i	RG-316	Free Hanging (In-Line)	Male	Copper	9 "		228.6 mm	N-Type Plug Right Angle	50 Ohms	11 GHz	Free Hanging (In-Line)	Shielded	SMA to N-Type	Right Angle SMA Plug	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 103.72
		25	$ 101.71
		50	$ 99.70
		100	$ 97.69
		250	$ 95.68

Description

General part information

Q-2C0340 Series

Cable Assembly Coaxial SMA to N-Type RG-174 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
