EN3P7MPX

Active

Switchcraft Inc.

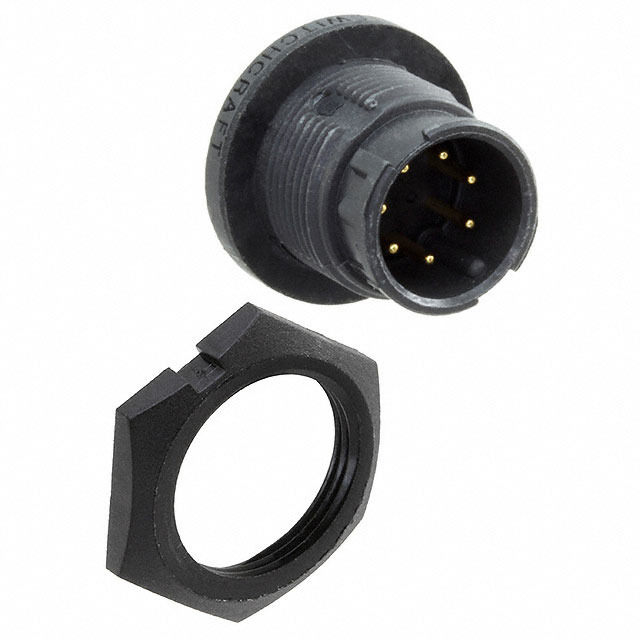

CONN RCPT MALE 7POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P7MPX

Active

Switchcraft Inc.

CONN RCPT MALE 7POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.23
		10	$ 8.64
		25	$ 7.81
		50	$ 7.66

Description

General part information

EN3P7M Series

7 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P7MPX	EN3P7M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6.5 A	4 - 6.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Circuit Board, Solder, Solder, Crimp
Voltage Rating	250 VAC	250 VAC

EN3P7M Series

CONN RCPT MALE 7POS GOLD SOLDER

Part	Primary Material	Number of Positions	Contact Finish - Mating	Color	Connector Type	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Material Flammability Rating	Fastening Type	Applications	Mounting Type	Mounting Feature	Orientation	Contact Material	Ingress Protection	Termination	Voltage Rating
Switchcraft Inc. EN3P7MRAPCBW	Plastic	7	Gold	Black	Male Pins, Receptacle	Unshielded	4 A	65 °C	-40 °C	Elastomer	UL94 V-0	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Right Angle, Through Hole	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	Circuit Board, Solder	250 VAC
Switchcraft Inc. EN3P7MPX	Plastic	7	Gold	Black	Male Pins, Receptacle	Unshielded	6.5 A	65 °C	-40 °C	Elastomer	UL94 V-0	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	Solder	250 VAC
Switchcraft Inc. EN3P7MCX	Plastic	7	Gold	Black	Male Pins, Receptacle	Unshielded	6.5 A	65 °C	-40 °C	Elastomer	UL94 V-0	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical		Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	Crimp	250 VAC
Switchcraft Inc. EN3P7MX	Plastic	7	Gold	Black	Male Pins, Receptacle	Unshielded	6.5 A	65 °C	-40 °C	Elastomer	UL94 V-0	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical		Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68		250 VAC
Switchcraft Inc. EN3P7MRAPCBN	Plastic	7	Gold	Black	Male Pins, Receptacle	Unshielded	4 A	65 °C	-40 °C	Elastomer	UL94 V-0	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Right Angle, Through Hole	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	Circuit Board, Solder	250 VAC
