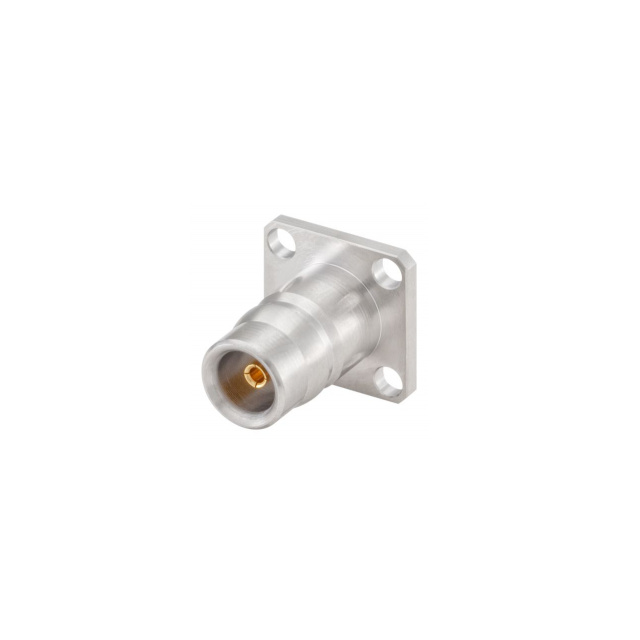

153QK401-200N5

Obsolete

Rosenberger

QN PANEL JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

QN PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	153QK401-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Body Finish	Shield Termination	Dielectric Material	Housing Color	Mounting Feature	Contact Termination	Body Material	Center Contact Material	Connector Type	Center Contact Plating	Number of Ports	Frequency - Max [Max]	Impedance
Rosenberger 153QK401-200N5	QN	125 °C	-40 °C	1000 VDC	White Bronze	Solder	Polytetrafluoroethylene (PTFE)	Silver	Flange	Solder Cup	Brass	Brass	Female Socket Jack	Gold	1	11 GHz	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QN Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
