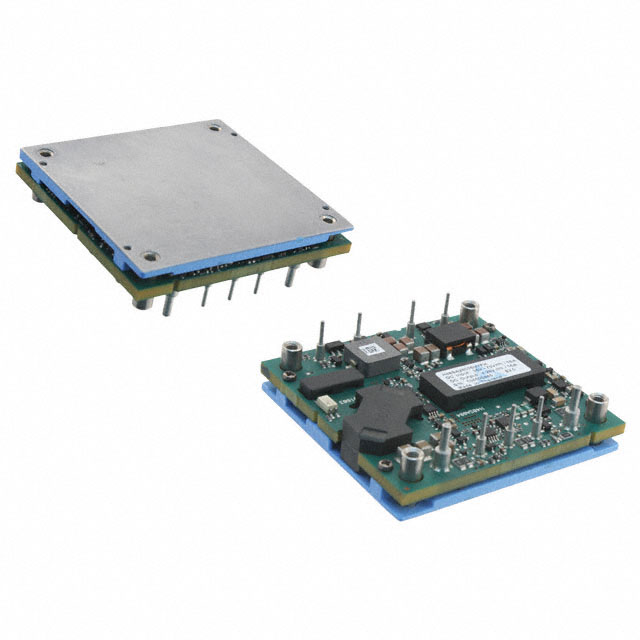

H48SA28016NYFH
ObsoleteDelta Electronics
DC DC CONVERTER 28V 450W
Deep-Dive with AI
Search across all available documentation for this part.
H48SA28016NYFH
ObsoleteDelta Electronics
DC DC CONVERTER 28V 450W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H48SA28016NYFH |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 92.7 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 98 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 450 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 70 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
H48SA Series
Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
