IDSD-08-D-08.00-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Number of Positions	Shielding	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Color	Connector Type	Length	Length	Length	Features	Length [x]	Length [x]
Samtec Inc. IDSD-08-D-12.00-T	2	16	Unshielded	IDC	Tin	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket	1 ft	304.8 mm
Samtec Inc. IDSD-08-S-09.00-G	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Cable	0.75 ft	228.6 mm	9 in
Samtec Inc. IDSD-08-S-17.70-G-RW	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Cable				Reverse Wiring
Samtec Inc. IDSD-08-S-15.00	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Socket to Cable		381 mm			15 in
Samtec Inc. IDSD-08-S-10.00-G	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Cable	0.833 ft	254 mm	10 in
Samtec Inc. IDSD-08-D-03.00	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket	0.25 ft	76.2 mm	3 "
Samtec Inc. IDSD-08-D-16.00	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket					1.33 ft	406.4 mm
Samtec Inc. IDSD-08-S-14.20-G-RW	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Cable				Reverse Wiring	1.18 ft	360.68 mm
Samtec Inc. IDSD-08-S-40.00-G	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Cable					3.33 '	1.02 m
Samtec Inc. IDSD-08-D-08.00-G	2	16	Unshielded	IDC	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm		Socket to Socket	0.667 ft	203.2 mm	8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.83

General part information

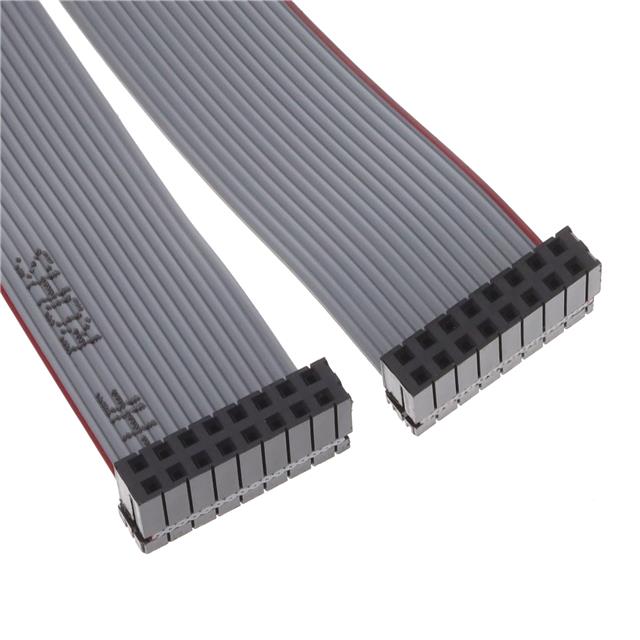

16 Position Cable Assembly Rectangular Socket to Socket 0.667' (203.20mm, 8.00")

Technical documentation and resources

No documents available
