T4030014031-000
ActiveTE Connectivity AMP Connectors

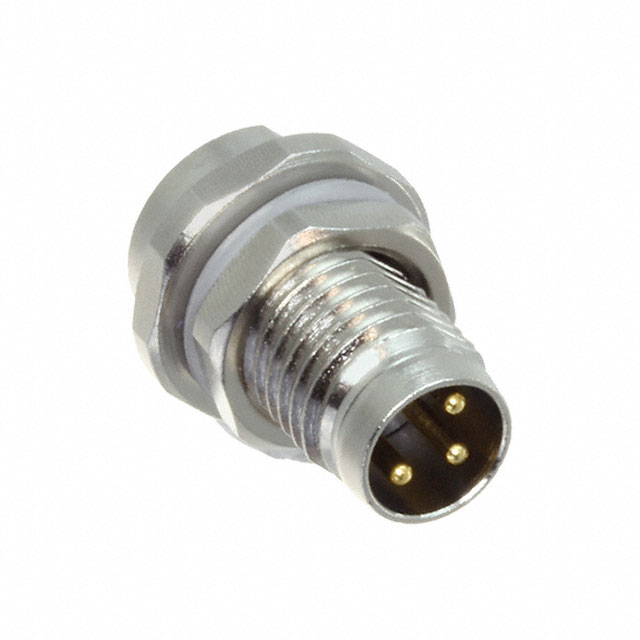

CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4030014031-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4030014031-000 | T40300 Series |
|---|---|---|
| Applications | Telecommunications, Automation Control, Industrial | Telecommunications, Automation Control, Industrial |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Current Rating (Amps) | 3 A | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M8-3 | M8-4, M8-3 |
| Voltage Rating | 60 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.13 | |
| 10 | $ 5.91 | |||
| 25 | $ 5.48 | |||
| 50 | $ 5.18 | |||
| 100 | $ 4.90 | |||
| 250 | $ 4.54 | |||
| 500 | $ 4.30 | |||
| 1000 | $ 4.06 | |||
| 2500 | $ 3.84 | |||
T40300 Series
CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Applications | Mounting Feature | Primary Material | Ingress Protection | Current Rating (Amps) | Connector Type | Color | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Voltage Rating | Shell Material | Shell Size - Insert | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4030014041-000 | Automation Control, Industrial, Telecommunications | Bulkhead - Front Side Nut | Metal | IP67 - Dust Tight, Waterproof | 3 A | Male Pins, Plug | Silver | Gold | 85 °C | -40 °C | A | 30 VDC | Copper Alloy | M8-4 | Nickel | 3 µin | 0.076 µm | 4 |
TE Connectivity AMP Connectors T4030014031-000 | Automation Control, Industrial, Telecommunications | Bulkhead - Front Side Nut | Metal | IP67 - Dust Tight, Waterproof | 3 A | Male Pins, Plug | Silver | Gold | 85 °C | -40 °C | A | 60 VDC | Copper Alloy | M8-3 | Nickel | 3 µin | 0.076 µm |
Description
General part information
T40300 Series
3 Position Circular Connector Plug, Male Pins Solder Cup
