6547-0-00-21-00-00-33-0
ActiveMill-Max Manufacturing Corp.

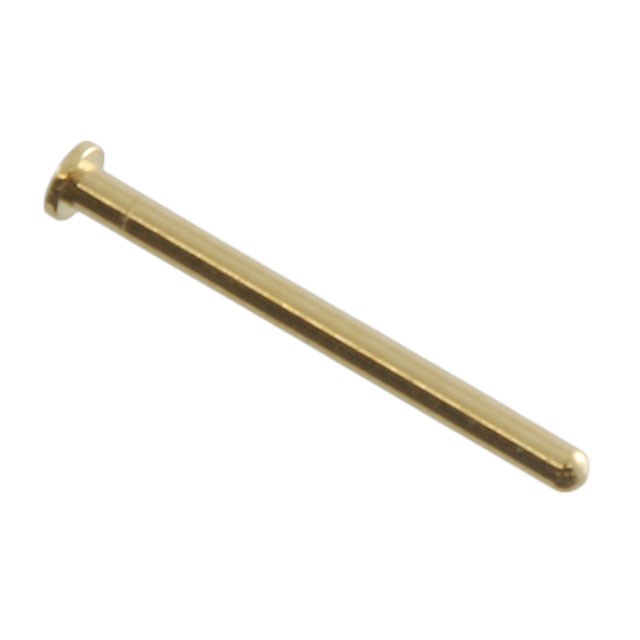

CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
6547-0-00-21-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6547-0-00-21-00-00-33-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.036 in |
| Flange Diameter [diameter] | 0.91 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.3 mm |
| Length - Above Flange [x] | 0.248 in |
| Length - Overall [x] | 0.253 in |
| Length - Overall [x] | 6.43 mm |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.49 | |||
Description
General part information
6547-0 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
