LPF-25D-15

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 8.25-15V 1.67A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

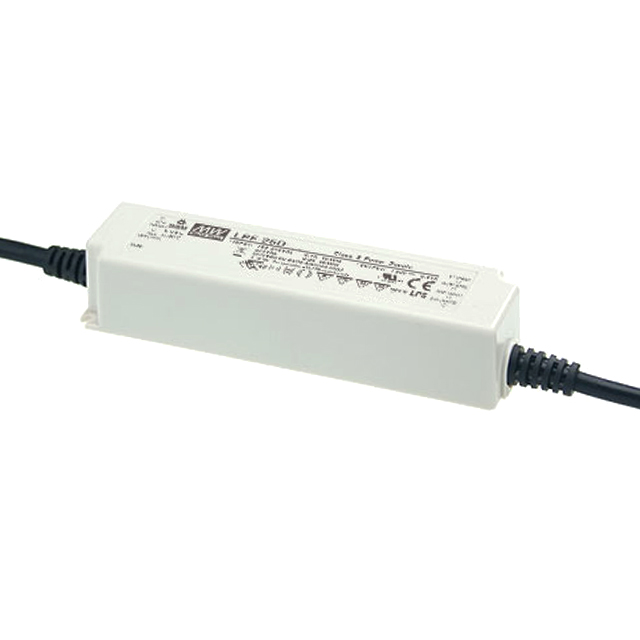

LPF-25D-15

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 8.25-15V 1.67A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPF-25D-15

Approval Agency	CE, PSE, ENEC, CCC, CB, cURus
Current - Output (Max) [Max]	1.67 A
Dimming	Analog, PWM
Efficiency	84 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Power (Watts)	25 W
Ratings	IP67
Size / Dimension [x]	5.83 in
Size / Dimension [x]	148 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	15 V
Voltage - Output [Min]	8.25 V

LPF-25 Series

Part	Features	Ratings	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Efficiency	Current - Output (Max) [Max]	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Type	Dimming
MEAN WELL USA Inc. LPF-25-12	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	84 %	2.1 A	AC DC Converter	12 V	6.6 V	305 VAC	3750 V	Constant Current Voltage
MEAN WELL USA Inc. LPF-25D-24	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	85.5 %	1.05 A	AC DC Converter	24 V	13.2 V	305 VAC	3750 V	Constant Current	Analog PWM
MEAN WELL USA Inc. LPF-25D-15	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	84 %	1.67 A	AC DC Converter	15 V	8.25 V	305 VAC	3750 V	Constant Current	Analog PWM
MEAN WELL USA Inc. LPF-25D-54	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	86 %	470 mA	AC DC Converter	54 V	29.7 V	305 VAC	3750 V	Constant Current	Analog PWM
MEAN WELL USA Inc. LPF-25-15	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	85 %	1.67 A	AC DC Converter	15 V	8.25 V	305 VAC	3750 V	Constant Current Voltage
MEAN WELL USA Inc. LPF-25D-30	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	85.5 %	840 mA	AC DC Converter	30 VDC	16.5 V	305 VAC	3750 V	Constant Current	Analog PWM
MEAN WELL USA Inc. LPF-25-54	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	86.5 %	470 mA	AC DC Converter	54 V	29.7 V	305 VAC	3750 V	Constant Current Voltage
MEAN WELL USA Inc. LPF-25-48	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	87 %	530 mA	AC DC Converter	48 V	26.4 V	305 VAC	3750 V	Constant Current Voltage
MEAN WELL USA Inc. LPF-25D-48	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	86 %	530 mA	AC DC Converter	48 V	26.4 V	305 VAC	3750 V	Constant Current	Analog PWM
MEAN WELL USA Inc. LPF-25D-42	OCP OTP OVP SCP	IP67	90 VAC	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	CB CCC CE cURus ENEC PSE	1	25 W	-35 °C	70 °C	Wire Leads	Chassis Mount	85.5 %	600 mA	AC DC Converter	42 V	23.1 V	305 VAC	3750 V	Constant Current	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.64
		5	$ 23.78
		10	$ 23.03
		25	$ 22.06

Description

General part information

LPF-25 Series

1.67A 8.25 ~ 15V Constant Current LED Driver AC DC Converter Topology 1 Output
