Specification	UF3C065040B3

Current - Continuous Drain (Id) (Tc)	41 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	12 V
FET Type	N-Channel
Gate Charge (Max)	51 nC
Input Capacitance (Ciss) (Max)	1500 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C

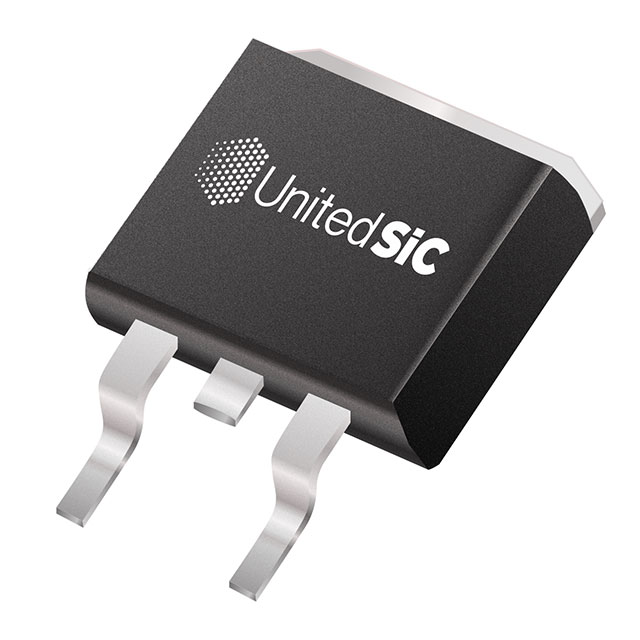

Package / Case	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB
Package Name	TO-263 (D2PAK)
Power Dissipation (Max)	176 W
Rds On (Max)	52 mOhm
Vgs (Max)	25 V
Vgs(th) (Max)	6 V

UF3C065040 Series

Part	Package Name	Vgs (Max)	Input Capacitance (Ciss) (Max)	Power Dissipation (Max)	Rds On (Max)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) (Tc)	Drain to Source Voltage (Vdss)	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	FET Type	Gate Charge (Max)	Vgs(th) (Max)
Qorvo UF3C065040B3	TO-263 (D2PAK)	25 V	1500 pF	176 W	52 mOhm	12 V	41 A	650 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	-55 °C	175 °C	Surface Mount	N-Channel	51 nC	6 V
Qorvo UF3C065040K3S	TO-247-3	25 V	1500 pF	326 W	52 mOhm	12 V	54 A 54 A	650 V	TO-247-3	-55 °C	175 °C	Through Hole	N-Channel	51 nC	6 V
Qorvo UF3C065040T3S	TO-220-3	25 V	1500 pF	326 W	52 mOhm	12 V	54 A 54 A	650 V	TO-220-3	-55 °C	175 °C	Through Hole	N-Channel	51 nC	6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
