A79103-001

Active

Omnetics

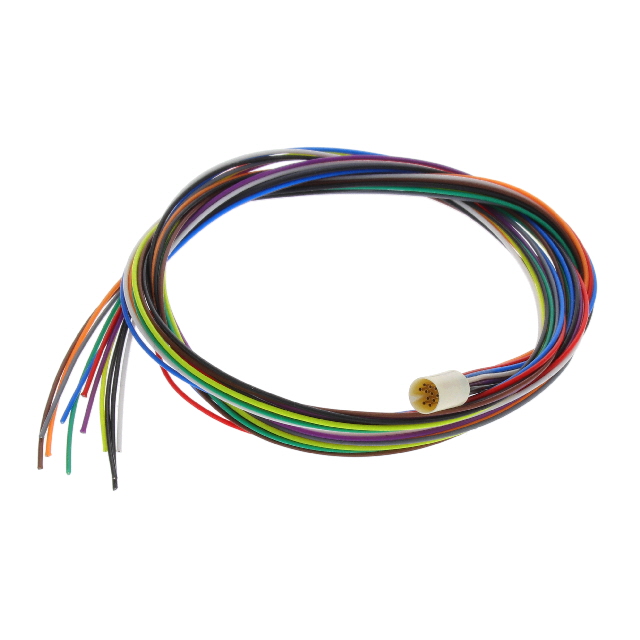

CIRC CBL 11POS RCPT TO WIRE 1.5'

Search across all available documentation for this part.

Active

Omnetics

CIRC CBL 11POS RCPT TO WIRE 1.5'

Technical Specifications

Parameters and characteristics for this part

Specification	A79103-001

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	11
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polytetrafluoroethylene (PTFE)
Cable Type	Individual
Color	Multiple
Length [x]	457.2 mm
Length [x]	1.5 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Cable Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Type	Usage	Color	Cable Material	1st Connector Gender	1st Connector Number of Positions	1st Connector Orientation [custom]	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Type	Shielding
Omnetics A79103-001	Individual	All	Standard	Wire Leads	Industrial Environments	Multiple	Polytetrafluoroethylene (PTFE)	Female Sockets	11	Keyed	Free Hanging (In-Line)	457.2 mm	1.5 ft	Receptacle	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.50' (457.20mm)
