51K542-K00A5

Active

Rosenberger

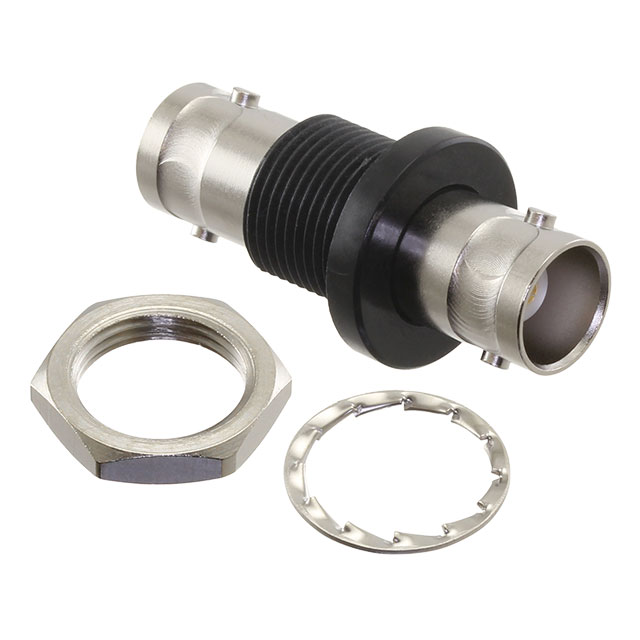

ADAPT BNC JACK - BNC JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT BNC JACK - BNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	51K542-K00A5

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Style	Straight

Part	Conversion Type	Body Material	Dielectric Material	Mounting Feature	Body Finish	Convert To (Adapter End)	Fastening Type	Center Contact Plating	Adapter Series	Adapter Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Impedance	Frequency - Max [Max]	Includes	Convert From (Adapter End)	Mating Cycles
Rosenberger 51K542-K00A5	Same Series	Brass	Polytetrafluoroethylene (PTFE)	Bulkhead	Nickel	BNC Jack Female Socket	Bayonet Lock	Gold	BNC to BNC	Jack to Jack	Straight	-25 °C	110 °C	Female to Female	50 Ohms	10 GHz	1 Connector 1 Lockwasher 1 Nut	BNC Jack Female Socket	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
