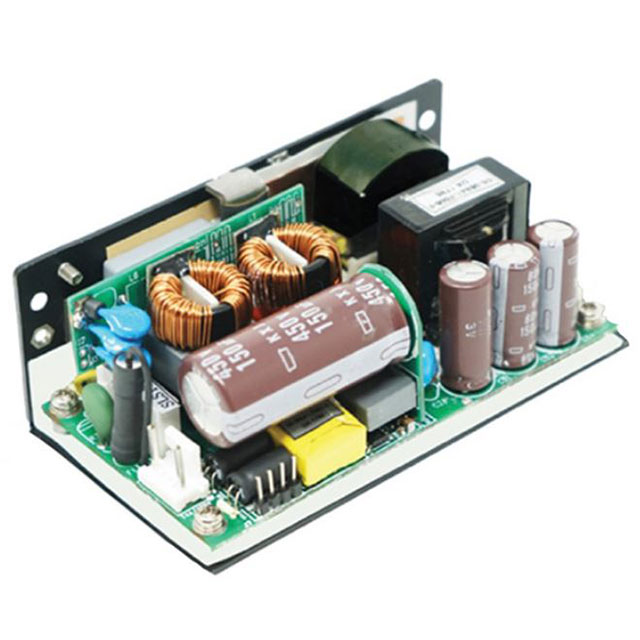

Specification	NGB250S12K

Applications	ITE (Commercial), Medical
Approval Agency	CE, DEMKO, cURus
Current - Output 1	14.6 A
Efficiency	90 %
Features	Universal Input, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	175 W
Size / Dimension Height	1.4 in
Size / Dimension Length	4 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4.5 kV
Voltage - Output 1	12 V

NGB250 Series

Part	Type	Voltage - Output 1	Current - Output 1	Mounting Type	Power (Watts)	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Features	Number of Outputs	Voltage - Isolation	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Minimum Load Required	Standard Number
SL POWER / Advanced Energy NGB250S48K	Open Frame	48 V	3.6 A	Chassis Mount	173 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V
SL POWER / Advanced Energy NGB250S12K	Open Frame	12 V	14.6 A	Chassis Mount	175 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V	No
SL POWER / Advanced Energy NGB250S12C	Open Frame	12 V	14.6 A	Chassis Mount	175 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V		60601-1 62368-1
SL POWER / Advanced Energy NGB250S15C	Open Frame	15 V	11.7 A	Chassis Mount	176 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V		60601-1 62368-1
SL POWER / Advanced Energy NGB250S24C	Open Frame	24 V	7.3 A	Chassis Mount	175 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V		60601-1 62368-1
SL POWER / Advanced Energy NGB250S24K	Open Frame	24 V	7.3 A	Chassis Mount	175 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V
SL POWER / Advanced Energy NGB250S48C	Open Frame	48 V	3.6 A	Chassis Mount	173 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V		60601-1 62368-1
SL POWER / Advanced Energy NGB250S15K	Open Frame	15 V	11.7 A	Chassis Mount	176 W	90 %	80 °C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	1.4 in	4 in	2 in	Adjustable Output Universal Input	1	4.5 kV	85 VAC	264 V		60601-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

NGB250S12K | Datasheet
