6302UE 877U500

Active

Belden Inc.

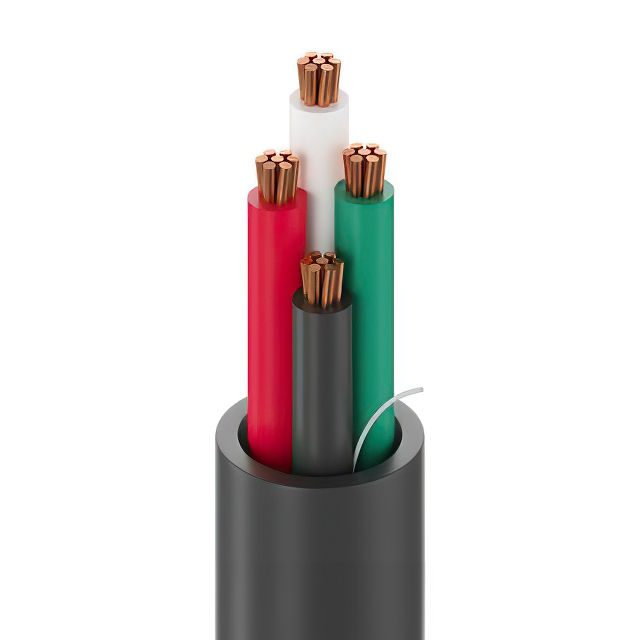

CABLE 4COND 18AWG NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

6302UE 877U500

Active

Belden Inc.

CABLE 4COND 18AWG NATURAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6302UE 877U500

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style CMP
Usage	Sound, Security, Alarm
Wire Gauge	18 AWG

6302UE Series

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Length [x]	Length [x]	Features	Wire Gauge	Cable Type	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Material	Voltage
Belden Inc. 6302UE 877U500	Copper Bare	4.57 mm	0.18 in	-10 °C	75 ░C	Alarm Security Sound	Natural	0.015 in	0.381 mm	UL Style CMP	500 '	152.4 m	Rip Cord	18 AWG	Multi-Conductor	4	Low Smoke Poly-Vinyl Chloride (LSPVC)
Belden Inc. 6302UE 0101000	Copper Bare	4.57 mm	0.18 in	-10 °C	75 ░C	Security Sound	Black	0.015 in	0.381 mm	UL Style CMP			Rip Cord	18 AWG	Multi-Conductor	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	26 AWG	7	1000 ft	304.8 m	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V
Belden Inc. 6302UE 004U1000	Copper Bare	4.57 mm	0.18 in	-10 °C	75 ░C	Security Sound	Yellow	0.015 in	0.381 mm	UL Style CMP			Rip Cord	18 AWG	Multi-Conductor	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	26 AWG	7	1000 ft	304.8 m	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V
Belden Inc. 6302UE 877U1000	Copper Bare	4.57 mm	0.18 in	-10 °C	75 ░C	Security Sound	Natural	0.015 in	0.381 mm	UL Style CMP			Rip Cord	18 AWG	Multi-Conductor	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	26 AWG	7	1000 ft	304.8 m	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V
Belden Inc. 6302UE 0041000	Copper Bare	4.57 mm	0.18 in	-10 °C	75 ░C	Security Sound	Yellow	0.015 in	0.381 mm	UL Style CMP			Rip Cord	18 AWG	Multi-Conductor	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	26 AWG	7	1000 ft	304.8 m	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 0.43
		1000	$ 0.40
		1500	$ 0.39
		2500	$ 0.38
		3500	$ 0.37
		5000	$ 0.36
		12500	$ 0.34
		25000	$ 0.32

Description

General part information

6302UE Series

4 Conductor Multi-Conductor Cable Natural 18 AWG 500.0' (152.4m)

Documents

Technical documentation and resources

No documents available
