EN3L6MX

Active

Switchcraft Inc.

CONN CIRCULAR PIN 6 POS SOLDER CUP ST CABLE MOUNT 6 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR PIN 6 POS SOLDER CUP ST CABLE MOUNT 6 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	EN3L6MX

Applications	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm
Cable Opening [diameter]	0.265 in, 0.16 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	IP66/IP68
Insert Material	Elastomer
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	250 VAC

CONN CIRCULAR PIN 6 POS SOLDER CUP ST CABLE MOUNT 6 TERMINAL 1 PORT BULK

Part	Primary Material	Current Rating (Amps)	Number of Positions	Applications	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Voltage Rating	Contact Material	Fastening Type	Connector Type	Material Flammability Rating	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Orientation	Color	Ingress Protection	Insert Material	Backshell Material, Plating
Switchcraft Inc. EN3L6MX	Plastic	7.5 A	6	General Purpose, Instrumentation, Marine, Medical	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Unshielded	250 VAC	Copper Alloy	Bayonet Lock	Male Pins, Receptacle	UL94 V-0	Backshell, Cable Clamp	Free Hanging (In-Line)	65 °C	-40 °C	Gold	Keyed	Black	IP66/IP68	Elastomer	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

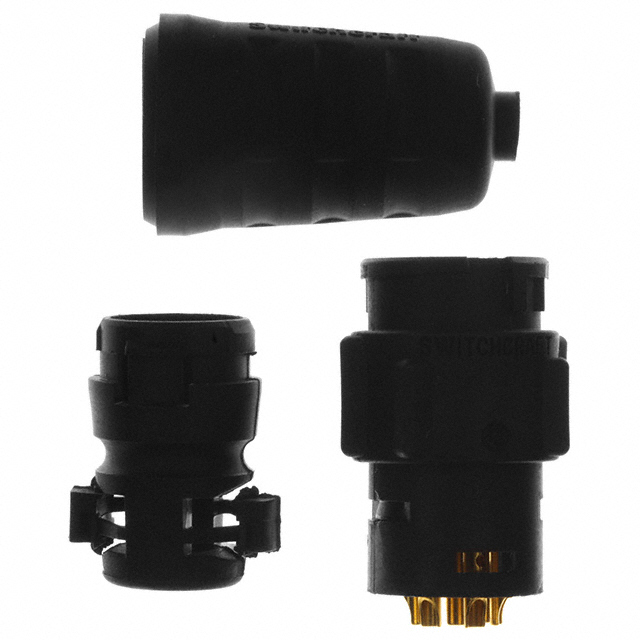

6 Position Circular Connector Receptacle, Male Pins Solder Cup
