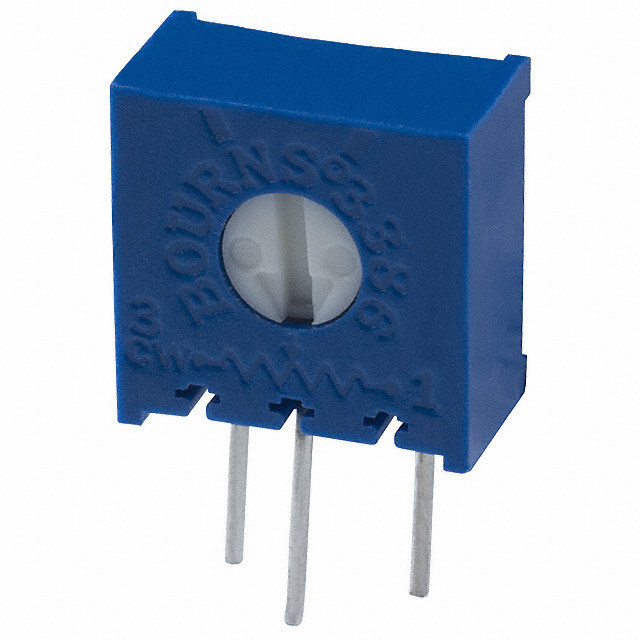

3386X-DF6-201

Active

TRIMMER 200 OHM 0.5W PC PIN SIDE

Active

TRIMMER 200 OHM 0.5W PC PIN SIDE

Description

General part information

200 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment

Parameters and characteristics for this part

...

Part	Adjustment Type	Temperature Coefficient	Number of Turns	Power (Watts)	Power (Watts) Options	Tolerance	Resistive Material	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Termination Style	Resistance	Mounting Type
Bourns Inc. 3386X-1-104LF	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	100 kOhm	Through Hole
Bourns Inc. 3386X-1-104TLF	Side Finger Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	100 kOhm	Through Hole
Bourns Inc. 3386X-1-471LF	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	470 Ohm	Through Hole
Bourns Inc. 3386X-1-155T	Side Finger Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	1.5 MOhm	Through Hole
Bourns Inc. 3386X-DF6-504	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	500 kOhm	Through Hole
Bourns Inc. 3386X-1-500	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	50 Ohms	Through Hole
Bourns Inc. 3386X-DF6-201	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	200 Ohm	Through Hole
Bourns Inc. 3386X-1-505	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	5 MOhm	Through Hole
Bourns Inc. 3386X-1-105	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	1 MOhm	Through Hole
Bourns Inc. 3386X-1-152	Side Adjustment	100 ppm/°C	1 turns	500 mW	1/2W	10 %	Cermet	0.375 in	Square	0.375 in	PC Pins	1.5 kOhms	Through Hole
