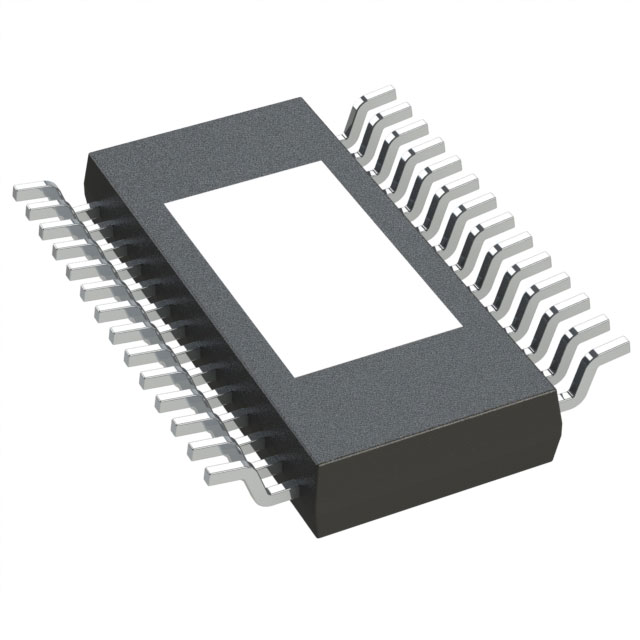

MLX83100LGO-DDA-000-SP

Melexis Technologies NV

IC 2PHS PREDRVR 4.5-28V 28TSSOP

Search across all available documentation for this part.

Melexis Technologies NV

IC 2PHS PREDRVR 4.5-28V 28TSSOP

Technical Specifications

Parameters and characteristics for this part

Part	Grade	Technology	Mounting Type	Motor Type - Stepper	Package / Case	Package / Case [custom]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load	Function	Supplier Device Package	Interface	Motor Type - AC, DC	Output Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Gate Type	Driven Configuration	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Qualification
Melexis Technologies NV MLX83100LGO-DDA-000-SP	Automotive	Power MOSFET	Surface Mount	Bipolar	28-TSSOP Exposed Pad	4.4 mm	0.173 in	-40 °C	150 °C	17 V 52 V	Controller - Speed	28-TSSOP-EP	PWM	Brushed DC	Pre-Driver - Half Bridge (2)
Melexis Technologies NV MLX83100LGO-DBA-000-RE	Automotive		Surface Mount		28-TSSOP Exposed Pad	4.4 mm	0.173 in	-40 C	175 °C			28-TSSOP-EP				1.6 A	1.4 A	4	N-Channel MOSFET	Half-Bridge	Independent	7 ns	7 ns	4.5 V	28 V	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	40	$ 3.83

General part information

Bipolar Motor Driver Power MOSFET PWM 28-TSSOP-EP
