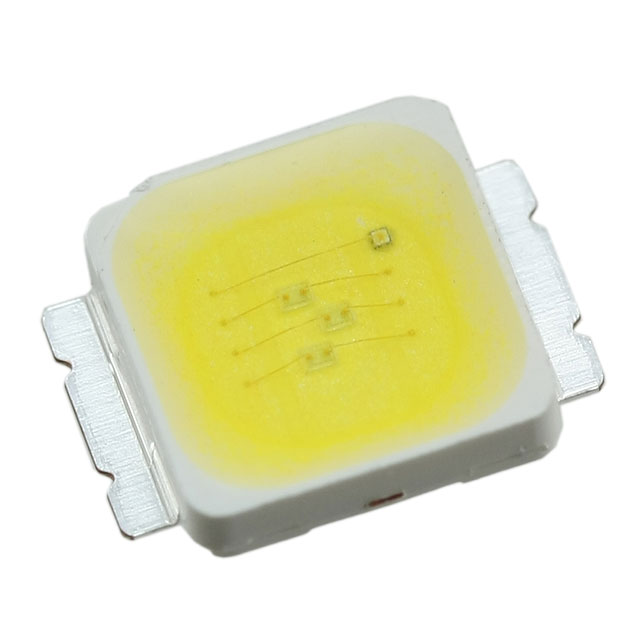

MX3AWT-A1-0000-000E53

Active

Cree LED

LED XLAMP COOL WHITE 6000K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX3AWT-A1-0000-000E53

Active

Cree LED

LED XLAMP COOL WHITE 6000K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX3AWT-A1-0000-000E53

CCT (K)	6000 K
Color	Cool, White
Current - Max [Max]	500 mA
Current - Test	350 mA
Flux @ 25°C, Current - Test	118 lm
Height - Seated (Max) [Max] [z]	1.48 mm
Height - Seated (Max) [Max] [z]	0.058 in
Lumens/Watt @ Current - Test	91 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	11 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.7 V

MX3AWT Series

...

Part	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	Current - Max [Max]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Supplier Device Package	CCT (K)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test
Cree LED MX3AWT-A1-R250-000BF7	3.7 V	11 °C/W	500 mA	75 lm/W	80	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	3200 K	94 lm	100 lm	97 lm	Warm White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-R250-000AB1	3.7 V	11 °C/W	500 mA	70 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD		87 lm	94 lm	91 lm	White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-R250-000C50	3.7 V	11 °C/W	500 mA	80 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	6000 K			104 lm	Cool White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-R250-0008F6	3.7 V	11 °C/W	500 mA	59 lm/W	80	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	3750 K	74 lm	81 lm	77 lm	Warm White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-0000-000AB5	3.7 V	11 °C/W	500 mA	70 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD		87 lm	94 lm	91 lm	White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-R250-000AE6	3.7 V	11 °C/W	500 mA	70 lm/W	80	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	3500 K	87 lm	94 lm	91 lm	Warm White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-0000-0009F5	3.7 V	11 °C/W	500 mA			2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	4300 K				Neutral White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-0000-000CA2	3.7 V	11 °C/W	500 mA	80 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	4750 K			104 lm	Neutral White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-0000-000E53	3.7 V	11 °C/W	500 mA	91 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	6000 K			118 lm	Cool White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA
Cree LED MX3AWT-A1-R250-000BF4	3.7 V	11 °C/W	500 mA	75 lm/W		2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	Surface Mount	SMD	4750 K	94 lm	100 lm	97 lm	Neutral White	0.197 in	5 mm	0.197 "	5 mm	120 °	350 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1400	$ 0.83

Description

General part information

MX3AWT Series

LED Lighting XLamp® MX-3 White, Cool 6000K 3.7V 350mA 120° 2-SMD, Gull Wing Exposed Pad

Documents

Technical documentation and resources
