ND3KC16H

NKK Switches

SW ROTARY DIP HEX COMP 0.1A 5V

Search across all available documentation for this part.

NKK Switches

SW ROTARY DIP HEX COMP 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	ND3KC16H

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal Complement
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	100 mA
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Height Above Board	8.03 mm
Height Above Board	0.316 in
Length [x]	8.13 mm
Length [x]	0.32 in
Mechanical Life	20000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	True

Part	Voltage Rating	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Contact Finish	Height Above Board	Height Above Board	Contact Material	Electrical Life	Washable	Mounting Type	Number of Positions	Termination Style	Length [x]	Length [x]	Body Material	Pitch [x]	Pitch [x]	Mechanical Life	Current Rating (Amps)	Actuator Level	Pitch
NKK Switches ND3KC16H	5 V	Epoxy Sealed Terminals	Rotary with Shaft	-25 °C	85 °C	Hexadecimal Complement	Gold	8.03 mm	0.316 in	Beryllium Copper	20000 Steps		Surface Mount Right Angle	16	Gull Wing	8.13 mm	0.32 in	Polyamide (PA) Nylon Glass Filled	0.05 in	1.27 mm	20000 Cycles	100 mA	Raised
NKK Switches ND3KC16P	5 V	Epoxy Sealed Terminals	Rotary with Shaft	-25 °C	85 °C	Hexadecimal Complement	Gold	8.8 mm	0.346 in	Beryllium Copper	20000 Steps		Surface Mount	16	Gull Wing	8.13 mm	0.32 in	Polyamide (PA) Nylon Glass Filled	0.1 in	2.54 mm	20000 Cycles	100 mA	Raised	Full

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.02

General part information

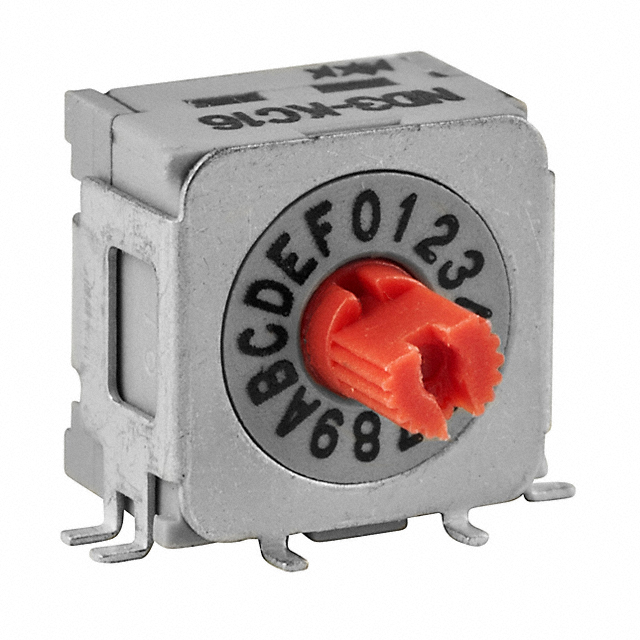

Dip Switch Hexadecimal Complement 16 Position Surface Mount, Right Angle Rotary with Shaft Actuator 100mA 5VDC
