DDB6U75N16W1RB11BOMA1

Active

Infineon Technologies

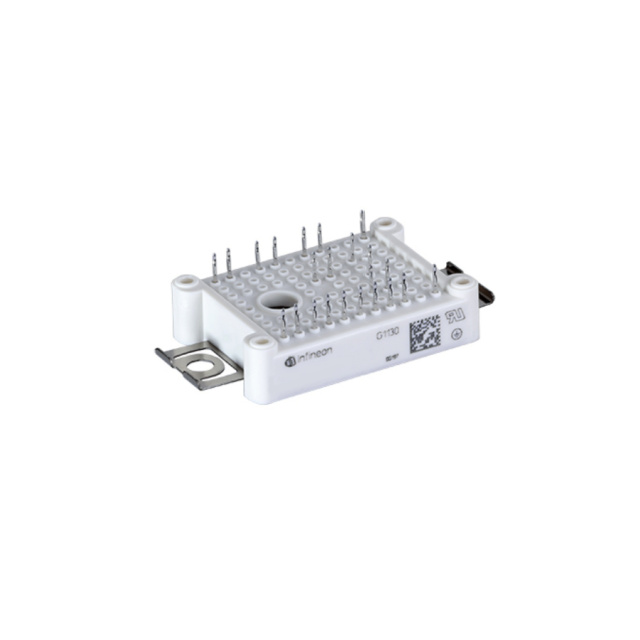

EASYBRIDGE 1 1600 V, 75 A DIODE BRIDGE MODULES WITH BRAKE CHOPPER AND NTC

Search across all available documentation for this part.

Active

Infineon Technologies

EASYBRIDGE 1 1600 V, 75 A DIODE BRIDGE MODULES WITH BRAKE CHOPPER AND NTC

Technical Specifications

Parameters and characteristics for this part

Specification	DDB6U75N16W1RB11BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	69 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	2.8 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	335 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Configuration	Input	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Package / Case	Power - Max [Max]	IGBT Type	Input Capacitance (Cies) @ Vce	Mounting Type
Infineon Technologies DDB6U75N16W1RB11BOMA1	2.15 V	1 mA	Three Phase Inverter	Standard		1200 V	Module	69 A	Module	335 W	Trench Field Stop	2.8 nF	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 24.92

General part information

EasyBRIDGE 1 - 1600VDiode Bridge Moduleswith Brake Chopper and NTC for a more compact converter design.
