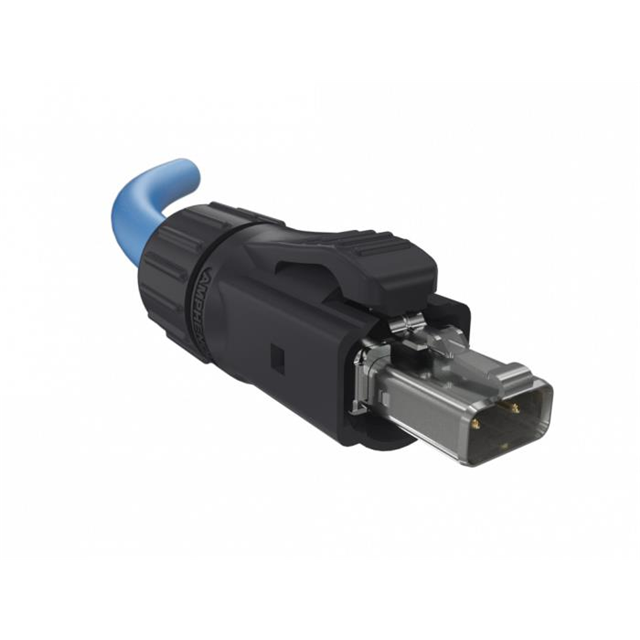

Specification	MSPE-P2L0-4A0

Cable Type	Not Specified, Round Cable
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Current Rating	4 A
Features	Cable Clamp, Housing
Housing Material	Thermoplastic
Ingress Protection	IP20
Length	1.327 in
Number of Positions/Contacts	Single Pair Ethernet (SPE), 2P2C
Shield Material	Stainless Steel
Shielding	Shielded
Termination	IDC
Voltage Rating	60 V
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	24 AWG

MSPE-P Series

Part	Cable Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness	Termination	Contact Material	Voltage Rating	Housing Material	Ingress Protection	Number of Positions/Contacts	Features	Color	Shielding	Shield Material	Connector Type	Length	Current Rating	Contact Finish
Amphenol ICC (Commercial Products) MSPE-P2L0-4A0	Not Specified Round Cable	26 AWG	24 AWG	30 µin	IDC	Copper Alloy	60 V	Thermoplastic	IP20	2P2C Single Pair Ethernet (SPE)	Cable Clamp Housing	Black	Shielded	Stainless Steel	Plug	1.327 in	4 A	Gold
Amphenol ICC (Commercial Products) MSPE-P2L0-2A0	Not Specified Round Cable	28 AWG	18 AWG	30 µin	IDC	Copper Alloy	60 V	Thermoplastic	IP20	2P2C Single Pair Ethernet (SPE)	Cable Clamp Housing	Black	Shielded	Stainless Steel	Plug	1.327 in	3 A	Gold
