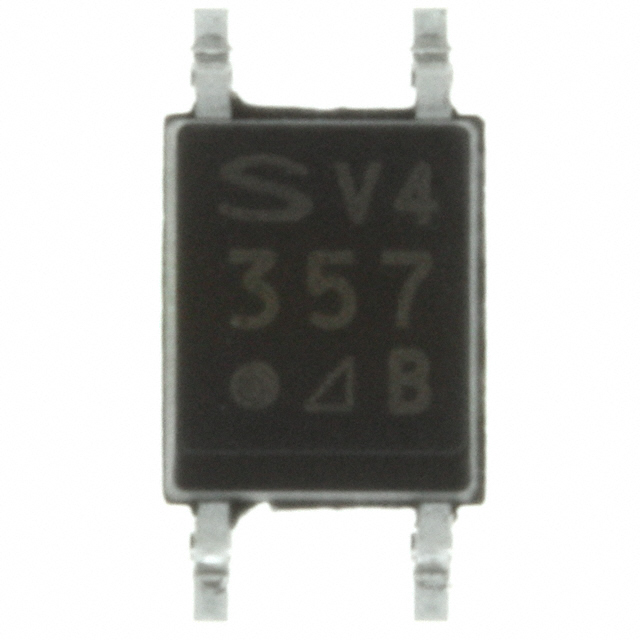

PC357N6J000F

Active

SHARP/Socle Technology

OPTOISO 3.75KV TRANSISTOR 4BESOP

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISO 3.75KV TRANSISTOR 4BESOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PC357N6J000F	PC357 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	400 %	260 - 400 %
Current Transfer Ratio (Max)	-	160 - 600 %
Current Transfer Ratio (Min) [Min]	130 %	50 - 300 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs	3 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	4-Mini-Flat	4-Mini-Flat
Vce Saturation (Max)	200 mV	200 mV
Voltage - Isolation	3750 Vrms	3750 Vrms

OPTOISO 3.75KV TRANS 4-MINI-FLAT

Part	Package / Case	Current - Output / Channel	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Current Transfer Ratio (Max) [Max]	Vce Saturation (Max)	Supplier Device Package	Current - DC Forward (If) (Max)	Output Type	Mounting Type	Current Transfer Ratio (Min) [Min]	Input Type	Current Transfer Ratio (Max)
SHARP/Socle Technology PC357N4J000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1	600 %	200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	300 %	DC
SHARP/Socle Technology PC357N2J000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1		200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	130 %	DC	260 %
SHARP/Socle Technology PC357N6J000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1		200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	130 %	DC	400 %
SHARP/Socle Technology PC357NJ0000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1	600 %	200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	50 %	DC
SHARP/Socle Technology PC357N3J000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1		200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	200 %	DC	400 %
SHARP/Socle Technology PC357N1J000F	4-SMD, Gull Wing	50 mA	3750 Vrms	3 µs	4 µs	100 °C	-30 ░C	1	160 %	200 mV	4-Mini-Flat	50 mA	1.81 mOhm	Surface Mount	80 %	DC
