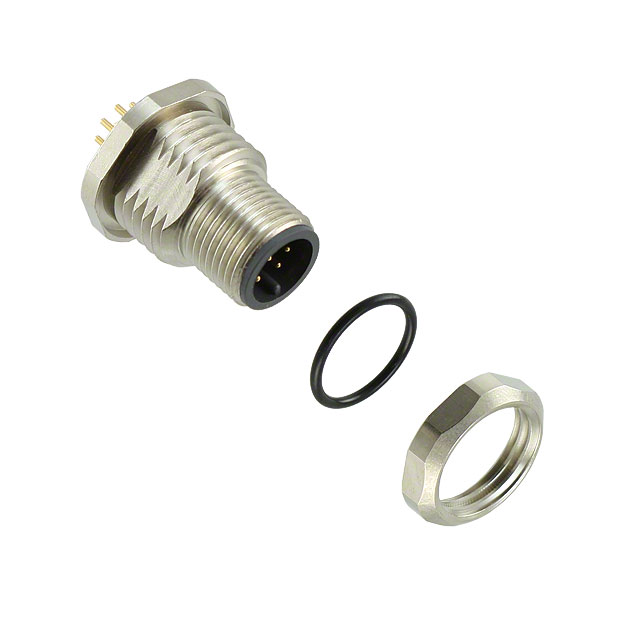

43-01034

Active

Amphenol CONEC

SENSOR CONN, M12, PLUG, 8POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01034

Active

Amphenol CONEC

SENSOR CONN, M12, PLUG, 8POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01034

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VDC

43-0103 Series

Part	1st Connector Type	1st Connector Number of Positions	Shielding	1st Connector Number of Positions Loaded	Assembly Configuration	Ingress Protection	1st Connector Orientation	Cable Material	Color	Length [x]	Length [x]	1st Connector Gender	Usage	Cable Type	2nd Connector Type	1st Connector Mounting Type	1st Connector Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Connector Type	Primary Material	Material Flammability Rating	Contact Material	Mounting Type	Mounting Feature	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Shell Finish	Voltage Rating	Shell Size - Insert	Insert Material	Shell Material	Termination
Amphenol CONEC 43-01039	Plug	5	Unshielded	All	Standard	IP67 - Dust Tight Waterproof	A	Copolymer	Multiple	1.64 ft	500 mm	Female Sockets	Industrial Environments	Individual	Wire Leads	Panel Mount	M12
Amphenol CONEC 43-01031			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Female Sockets Plug	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	2 A	8	Nickel	30 VDC	M12-8	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder
Amphenol CONEC 43-01033			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Male Pins Receptacle	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	4 A		Nickel	60 VDC	M12-5	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder
Amphenol CONEC 43-01037			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Male Pins Receptacle	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	2 A	8	Nickel	30 VDC	M12-8	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder
Amphenol CONEC 43-01030			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Female Sockets Plug	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	4 A		Nickel	60 VDC	M12-5	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder
Amphenol CONEC 43-01038	Plug	4	Unshielded	All	Standard	IP67 - Dust Tight Waterproof	A	Copolymer	Multiple	1.64 ft	500 mm	Female Sockets	Industrial Environments	Individual	Wire Leads	Panel Mount	M12
Amphenol CONEC 43-01032			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Male Pins Receptacle	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	4 A	4	Nickel	250 VDC	M12-4	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder
Amphenol CONEC 43-01034			Unshielded			IP67 - Dust Tight Waterproof			Silver									-30 ░C	85 °C	A	Male Pins Receptacle	Metal	UL94	Copper Zinc	Panel Mount Through Hole	Bulkhead - Front Side Nut	Gold	2 A	8	Nickel	30 VDC	M12-8	Polybutylene Terephthalate (PBT) Glass Filled	Copper Zinc	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.38
		10	$ 11.86
		30	$ 11.40
		50	$ 10.94
		100	$ 10.34
		250	$ 9.42
		500	$ 8.82
		1000	$ 8.09
Newark	Each	1	$ 9.67
		10	$ 8.89
		25	$ 8.23
		50	$ 7.62
		100	$ 7.14
		250	$ 6.71
		500	$ 6.32

Description

General part information

43-0103 Series

8 Position Circular Connector Receptacle, Male Pins Solder
