Q-0D05E0003072i

Active

Amphenol Custom Cable

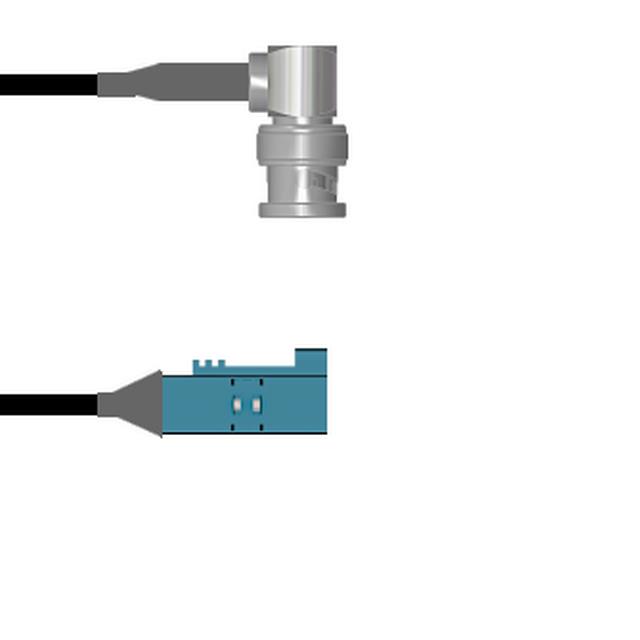

CBL ASSY BNC-FAKRA PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D05E0003072i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D05E0003072i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0D05E0 Series

Part	Overall Impedance	Color	Style	1st Contact Gender	Frequency - Max [Max]	2nd Connector	Length	Length	Cable Type	Features	2nd Contact Gender	1st Connector Mounting Type	1st Connector	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D05E0003003i	50 Ohms	Black	BNC to Fakra	Male	3 GHz	Fakra Jack	3 in	76.2 mm	RG-174	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05E0005048i	50 Ohms	Copper	BNC to Fakra	Male	3 GHz	Fakra Jack	48 in	1200 mm	RG-316	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-0D05E0005006i	50 Ohms	Copper	BNC to Fakra	Male	3 GHz	Fakra Jack	6 in	152.4 mm	RG-316	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05E0003.25M	50 Ohms	Black	BNC to Fakra	Male	3 GHz	Fakra Jack			RG-174	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-0D05E0003072i	50 Ohms	Black	BNC to Fakra	Male	3 GHz	Fakra Jack	72 in	1.8 m	RG-174	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0D05E0005002M	50 Ohms	Copper	BNC to Fakra	Male	3 GHz	Fakra Jack	78.7 in	2 m	RG-316	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-0D05E00032.5M	50 Ohms	Black	BNC to Fakra	Male	3 GHz	Fakra Jack	98.4 in	2.5 m	RG-174	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0D05E0003108i	50 Ohms	Black	BNC to Fakra	Male	3 GHz	Fakra Jack	108 in	2.7 m	RG-174	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-0D05E00052.5M	50 Ohms	Copper	BNC to Fakra	Male	3 GHz	Fakra Jack	98.4 in	2.5 m	RG-316	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0D05E0005108i	50 Ohms	Copper	BNC to Fakra	Male	3 GHz	Fakra Jack	108 in	2.7 m	RG-316	Shielded	Female	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.98
		25	$ 58.81
		50	$ 57.63
		100	$ 56.46
		250	$ 55.28

Description

General part information

Q-0D05E0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
