3-1123624-5
ActiveTE Connectivity AMP Connectors

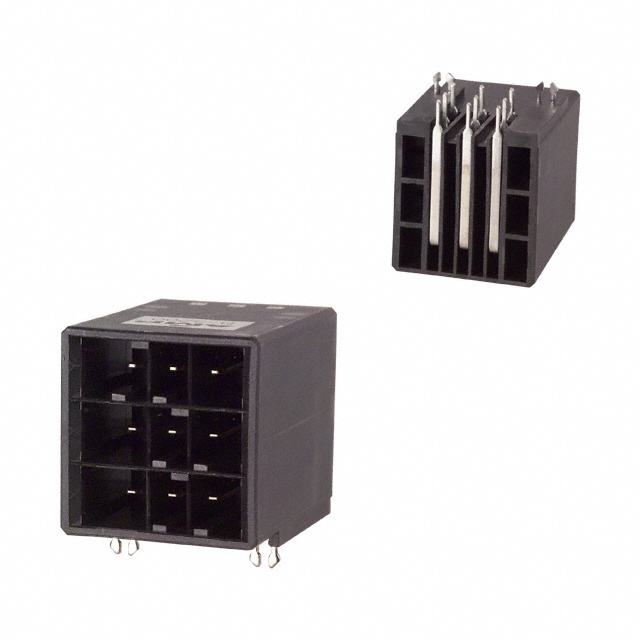

CONN HEADER R/A 9POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1123624-5
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 9POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1123624-5 | 1123624 Series |
|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold, PdNi +Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 15 - 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 0.38 - 2 µm |
| Contact Length - Post [x] | 0.15 in | 0.15 in |
| Contact Length - Post [x] | 3.81 mm | 3.81 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.968 in | 0.968 in |
| Insulation Height | 24.59 mm | 24.59 mm |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 9 | 9 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 2 - 3 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 5.08 mm | 5.08 mm |
| Pitch - Mating | 0.2 in | 0.2 in |
| Row Spacing - Mating [x] | 7.62 mm | 7.62 mm |
| Row Spacing - Mating [x] | 0.3 in | 0.3 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2280 | $ 2.86 | |
1123624 Series
CONN HEADER R/A 9POS 5.08MM
| Part | Contact Shape | Insulation Material | Applications | Style | Mounting Type | Insulation Height | Insulation Height | Termination | Connector Type | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions Loaded | Number of Positions | Material Flammability Rating | Contact Type | Voltage Rating | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-1123624-2 | Rectangular | Glass Filled, Polyester, Thermoplastic | General Purpose, Industrial | Board to Board, Cable | Through Hole, Right Angle | 0.968 in | 24.59 mm | Solder | Header | Shrouded - 4 Wall | 15 µin | 0.38 µm | Detent Lock | 105 ░C | -55 °C | 0.15 in | 3.81 mm | Tin | Black | 5.08 mm | 0.2 in | Gold | All | 9 | UL94 V-0 | Tab | 600 V | Copper Alloy | 7.62 mm | 0.3 in | 3 |
TE Connectivity AMP Connectors 9-1123624-2 | Rectangular | Glass Filled, Polyester, Thermoplastic | General Purpose, Industrial | Board to Board, Cable | Through Hole, Right Angle | 0.968 in | 24.59 mm | Solder | Header | Shrouded - 4 Wall | 15 µin | 0.38 µm | Detent Lock | 105 ░C | -55 °C | 0.15 in | 3.81 mm | Tin | Black | 5.08 mm | 0.2 in | Gold, PdNi +Gold | All | 9 | UL94 V-0 | Tab | 600 V | Copper Alloy | 7.62 mm | 0.3 in | 2 |
TE Connectivity AMP Connectors 1-1123624-2 | Rectangular | Glass Filled, Polyester, Thermoplastic | General Purpose, Industrial | Board to Board, Cable | Through Hole, Right Angle | 0.968 in | 24.59 mm | Solder | Header | Shrouded - 4 Wall | 15 µin | 0.38 µm | Detent Lock | 105 ░C | -55 °C | 0.15 in | 3.81 mm | Tin | Black | 5.08 mm | 0.2 in | Gold | All | 9 | UL94 V-0 | Tab | 600 V | Copper Alloy | 7.62 mm | 0.3 in | 3 |
TE Connectivity AMP Connectors 1-1123624-5 | Rectangular | Glass Filled, Polyester, Thermoplastic | General Purpose, Industrial | Board to Board, Cable | Through Hole, Right Angle | 0.968 in | 24.59 mm | Solder | Header | Shrouded - 4 Wall | 78.7 µin | 2 µm | Detent Lock | 105 ░C | -55 °C | 0.15 in | 3.81 mm | Tin | Black | 5.08 mm | 0.2 in | All | 9 | UL94 V-0 | Tab | 600 V | Copper Alloy | 7.62 mm | 0.3 in | 3 | |
TE Connectivity AMP Connectors 3-1123624-5 | Rectangular | Glass Filled, Polyester, Thermoplastic | General Purpose, Industrial | Board to Board, Cable | Through Hole, Right Angle | 0.968 in | 24.59 mm | Solder | Header | Shrouded - 4 Wall | 78.7 µin | 2 µm | Detent Lock | 105 ░C | -55 °C | 0.15 in | 3.81 mm | Tin | Black | 5.08 mm | 0.2 in | All | 9 | UL94 V-0 | Tab | 600 V | Copper Alloy | 7.62 mm | 0.3 in | 3 |
Description
General part information
1123624 Series
Connector Header Through Hole, Right Angle 9 position 0.200" (5.08mm)
