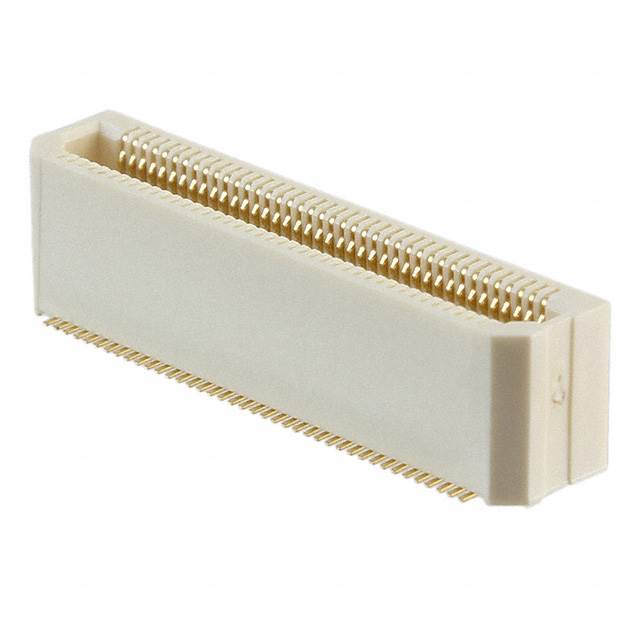

AXK5S80347YG
ActivePanasonic Electric Works
CONN SOCKET 80POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK5S80347YG
ActivePanasonic Electric Works
CONN SOCKET 80POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK5S80347YG |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.238 in |
| Height Above Board | 6.05 mm |
| Mated Stacking Heights | 9 mm, 7 mm, 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.91 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 50 | $ 2.45 | |||
| 100 | $ 2.33 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.98 | |||
| Digi-Reel® | 1 | $ 2.91 | ||
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 50 | $ 2.45 | |||
| 100 | $ 2.33 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.98 | |||
| Tape & Reel (TR) | 1000 | $ 1.69 | ||
| 2000 | $ 1.63 | |||
| 3000 | $ 1.57 | |||
| 5000 | $ 1.51 | |||
Description
General part information
AXK5S80347 Series
80 Position Connector Socket, Center Strip Contacts Surface Mount Gold
