87159-4

Active

TE Connectivity AMP Connectors

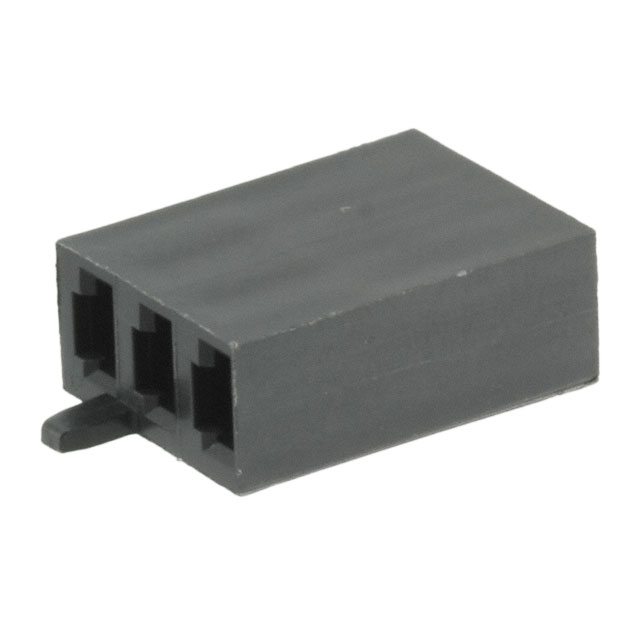

CONN RCPT HSG 3POS 3.96MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 3.96MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 3POS 3.96MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Connector Type	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Color	Number of Rows	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 87159-4	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)
TE Connectivity AMP Connectors 87159-7	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	7
TE Connectivity AMP Connectors 87159-6			Contacts Not Included		Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	6
TE Connectivity AMP Connectors 1-87159-2	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	12
TE Connectivity AMP Connectors 87159-3	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	2
TE Connectivity AMP Connectors 87159-8	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Black 0.156" (3.96mm)

Technical documentation and resources

No documents available
