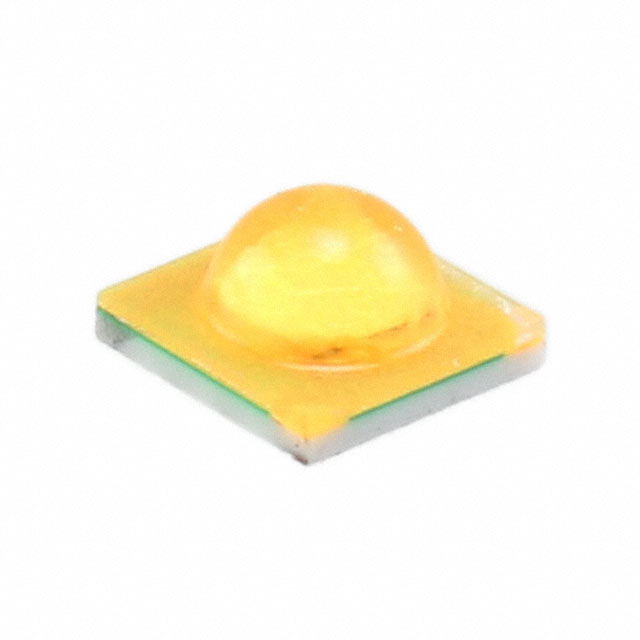

TL1L2-NW1,L

Obsolete

Toshiba Semiconductor and Storage

LED LETERAS COOL WHT 5000K 2SMD

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

LED LETERAS COOL WHT 5000K 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TL1L2-NW1,L

CCT (K)	5000 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Current - Test	350 mA
Flux @ 25°C, Current - Test	115 lm, 145 lm
Flux @ 25°C, Current - Test	130 lm
Height - Seated (Max) [Max] [z]	0.08 in
Height - Seated (Max) [Max] [z]	2.03 mm
Lumens/Watt @ Current - Test	130 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 in
Size / Dimension [y]	3.5 mm
Size / Dimension [y]	0.138 in
Supplier Device Package	3535
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.85 V

Part	Supplier Device Package	Mounting Type	Current - Test	Color	CCT (K)	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Thermal Resistance of Package [custom]	Package / Case	Package / Case	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Toshiba Semiconductor and Storage TL1L2-NW1,L	3535	Surface Mount	350 mA	Cool White	5000 K	120 °	0.08 in	2.03 mm	2.85 V	115 lm 145 lm	130 lm	130 lm/W	3.5 mm	3.5 mm	0.138 in	0.138 in	1 A	12 °C/W	3535 Metric	1414	80
Toshiba Semiconductor and Storage TL1L3-DW0,L	3535	Surface Mount	350 mA	Cool White	6500 K	100 °			2.85 V		145 lm	145 lm/W	3.5 mm	3.5 mm	0.138 in	0.138 in	1 A		3535 Metric	1414	70	0.099 in	2.52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting LETERAS™ White, Cool 5000K 2.85V 350mA 120° 1414 (3535 Metric)
