SSA-115-W-G

Active

Samtec Inc.

CONN RCPT 15POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 15POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-115-W-G

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.656 in
Contact Length - Post	16.66 mm
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.85 mm
Insulation Height	0.23 in
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Wire Wrap
Voltage Rating	1000 VDC

Part	Insulation Color	Contact Material	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Contact Finish - Mating	Voltage Rating	Number of Positions	Number of Positions Loaded
Samtec Inc. SSA-115-W-G	Black	Phosphor Bronze	0.656 in	16.66 mm	UL94 V-0	Through Hole	Female Socket	1	0.1 in	2.54 mm	Push-Pull	Wire Wrap	10 çin	0.25 çm	5.85 mm	0.23 in	-55 °C	125 °C	Breakaway Receptacle	Polyester Polyethylene Terephthalate (PET)	Gold	1000 VDC	15	All
Samtec Inc. SSA-115-S-G	Black	Phosphor Bronze	0.151 in	3.84 mm	UL94 V-0	Through Hole	Female Socket	1	0.1 in	2.54 mm	Push-Pull	Solder	10 çin	0.25 çm	5.85 mm	0.23 in	-55 °C	125 °C	Breakaway Receptacle	Polyester Polyethylene Terephthalate (PET)	Gold	1000 VDC	15	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

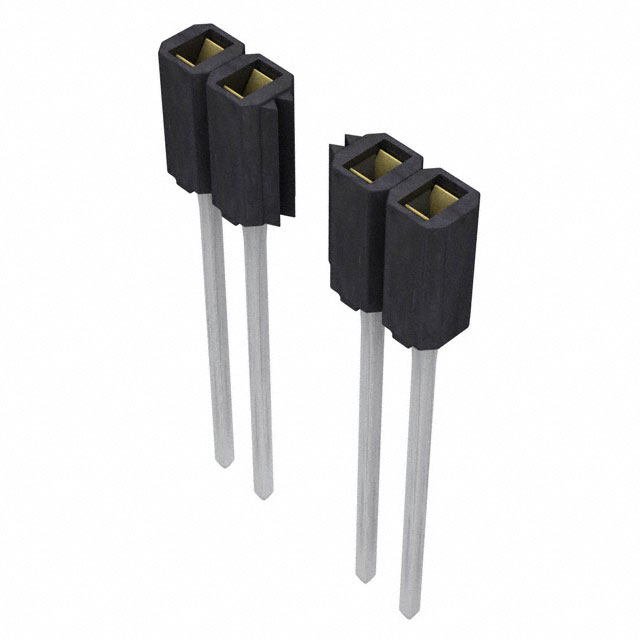

15 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole Gold
