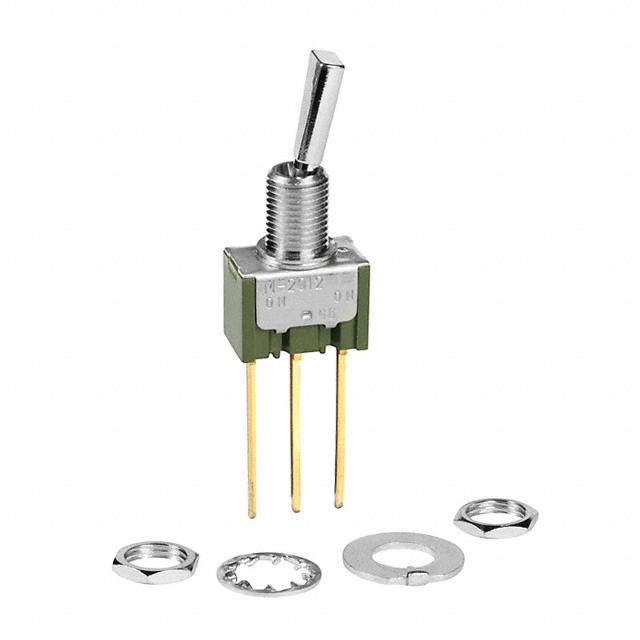

M2012ES1G06

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet M Series Bushing Mnt Mini Toggle Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012ES1G06

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Wire Wrap
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2012ES Series

Part	Actuator Type	Switch Function	Electrical Life	Bushing Thread	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Illumination	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type
NKK Switches M2012ES1W01/3	Flatted	On-On	25000 Steps	1/4-40	Brass	11.4 mm	125 V	Non-Illuminated	Solder Lug	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Black Actuator
NKK Switches M2012ES1G06	Flatted	On-On	50000 Cycles	1/4-40	Brass Chrome Plated	11.4 mm	28 V	Non-Illuminated	Wire Wrap	0.4 VA	28 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2012ES1W03	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	PC Pin	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2012ES1W01/CUL	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	Solder Lug	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2012ES1W01/U	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	Solder Lug	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2012ES1W30	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	PC Pin	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals	Panel Mount Right Angle
NKK Switches M2012ES1W01/UC/AT532TH	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	Solder Lug	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Includes Dress Nut
NKK Switches M2012ES1W03/UC	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	PC Pin	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2012ES2W03	Flatted	On-On	25000 Steps	Unthreaded	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	PC Pin	4 A 6 A	30 V		SPDT	-30 ░C	85 °C	Epoxy Sealed Terminals	Through Hole
NKK Switches M2012ES1W01/CUL-WL	Flatted	On-On	25000 Steps	1/4-40	Brass Chrome Plated	11.4 mm	125 V	Non-Illuminated	Wire Leads	4 A 6 A	30 V	6.5 mm	SPDT	-30 ░C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.96
		10	$ 6.00
		25	$ 5.66
		50	$ 5.41
		100	$ 5.18
		250	$ 5.96

Description

General part information

M2012ES Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

M Series Bushing Mnt Mini Toggle Datasheet
