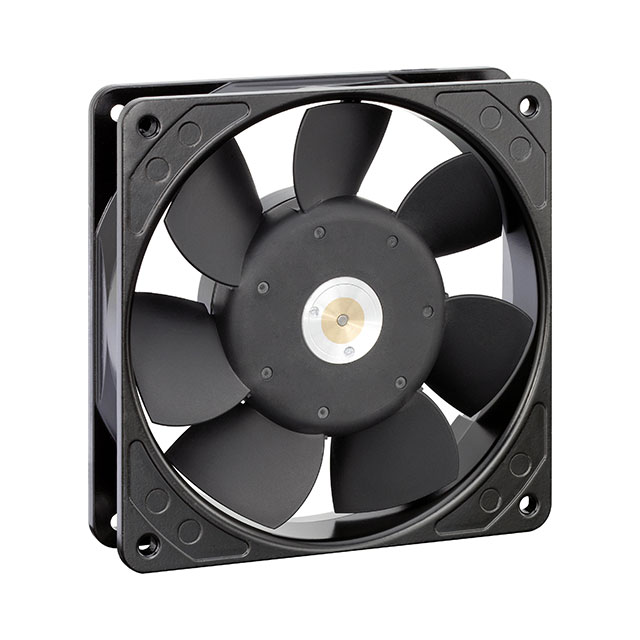

9956M
Obsoleteebm-papst Inc.
FAN AXIAL 119X25MM 230VAC TERM
9956M
Obsoleteebm-papst Inc.
FAN AXIAL 119X25MM 230VAC TERM
Description
General part information
9956 Series
Fan Tubeaxial 230VAC Square - 119mm L x 119mm H Ball 61.2 CFM (1.71mł/min) 2 Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 9956M |
|---|---|
| Air Flow | 61.2 CFM |
| Approval Agency | CSA, UL, CE, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime | 57500 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 35 dB |
| Operating Temperature (Max) | 176 °F |
| Operating Temperature (Min) | -40 °F |
| Power (Watts) | 10 W |
| RPM | 2250 RPM |
| Size / Dimension Height | 119 mm |
| Size / Dimension Length | 119 mm |
| Size / Dimension Shape | Square |
| Termination | 2 Terminals |
| Termination Count | 2 |
| Voltage - Rated | 230 VAC |
| Weight | 0.716 lb |
| Width | 25 mm |
