C2535A.38.10
ActivePrysmian Group

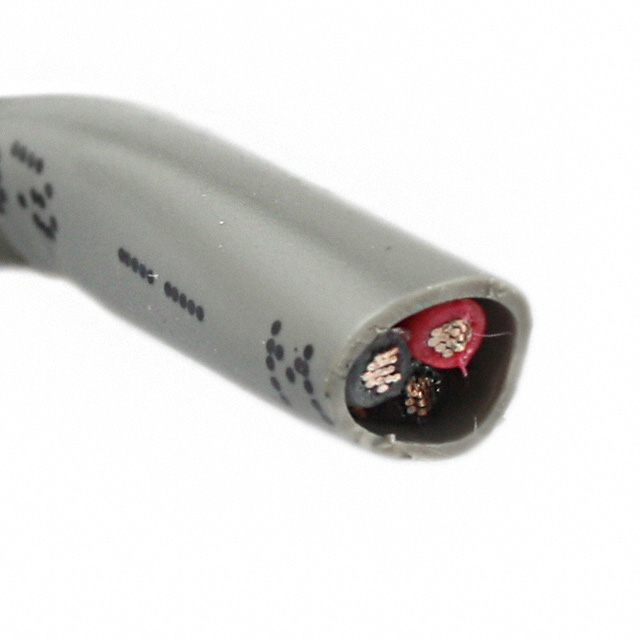

CABLE 3COND 18AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C2535A.38.10
ActivePrysmian Group
CABLE 3COND 18AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2535A.38.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.219 in |
| Jacket (Insulation) Diameter [diameter] | 5.56 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 3 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 190.69 | |
| 2 | $ 181.41 | |||
| 3 | $ 176.16 | |||
| 5 | $ 169.73 | |||
| 7 | $ 165.60 | |||
| 10 | $ 161.32 | |||
| 25 | $ 150.73 | |||
| 50 | $ 143.10 | |||
Description
General part information
C2535 Series
3 Conductor Multi-Conductor Cable Gray 18 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
