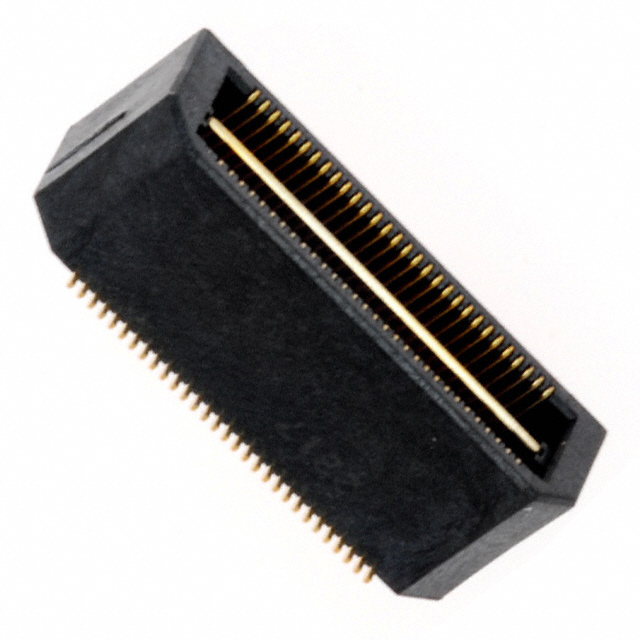

QTH-030-02-F-D-A-K-TR

Active

Samtec Inc.

CONN DIFF ARRAY PLG 60P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QTH-020-01-F-D-DP-A Datasheet 02 +2

QTH-030-02-F-D-A-K-TR

Active

Samtec Inc.

CONN DIFF ARRAY PLG 60P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet QTH-020-01-F-D-DP-A Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-030-02-F-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	7.26 mm
Height Above Board	0.286 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-030 Series

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

...

Part	Number of Positions	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Features	Mated Stacking Heights
Samtec Inc. QTH-030-01-F-D-A-L	60	Surface Mount	2	4.06 mm	0.16 in	0.5 mm	0.02 in	3 Áin	0.076 Ám	Header Outer Shroud Contacts	Gold	Board Guide Ground Bus (Plane) Latches	5 mm
Samtec Inc. QTH-040-04-C-D-DP-A	80	Surface Mount	2	15.24 mm	0.6 in	0.5 mm	0.02 in	50 µin	1.27 µm	Differential Pair Array Male	Gold		16 mm
Samtec Inc. QTH-040-01-C-D-DP-A-K-TR	80	Surface Mount	2	4.06 mm	0.16 in	0.5 mm	0.02 in	50 µin	1.27 µm	Differential Pair Array Male	Gold	Board Guide Ground Bus (Plane) Pick and Place	5 mm
Samtec Inc. QTH-030-02-C-D-A	60	Surface Mount	2	7.26 mm	0.286 "	0.5 mm	0.02 in	50 µin	1.27 µm	Header Outer Shroud Contacts	Gold		8 mm
Samtec Inc. QTH-030-05-L-D-LC	60	Surface Mount	2	18.24 mm	0.718 in	0.5 mm	0.02 in	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Gold	Board Lock Ground Bus (Plane)	19 mm
Samtec Inc. QTH-030-03-L-D-A-K-TR	60	Surface Mount	2	10.27 mm	0.404 in	0.5 mm	0.02 in	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Gold	Board Guide Ground Bus (Plane) Pick and Place	11 mm
Samtec Inc. QTH-030-02-L-D-A-K	60	Surface Mount	2	7.26 mm	0.286 "	0.5 mm	0.02 in	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Gold	Board Guide Ground Bus (Plane) Pick and Place	8 mm
Samtec Inc. QTH-060-01-L-D-A-GP	120	Surface Mount	2	4.06 mm	0.16 in	0.5 mm	0.02 in	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Gold	Board Guide Ground Bus (Plane) Mating Guide	5 mm
Samtec Inc. QTH-030-02-F-D-A-K-TR	60	Surface Mount	2	7.26 mm	0.286 "	0.5 mm	0.02 in	3 Áin	0.076 Ám	Header Outer Shroud Contacts	Gold	Board Guide Ground Bus (Plane) Pick and Place	8 mm
Samtec Inc. QTH-030-04-H-D-A	60	Surface Mount	2	15.24 mm	0.6 in	0.5 mm	0.02 in	30 Áin	0.76 Ám	Header Outer Shroud Contacts	Gold		16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.98
		50	$ 4.57
		100	$ 4.28
	Digi-Reel®	1	$ 4.98
		50	$ 4.57
		100	$ 4.28
	Tape & Reel (TR)	300	$ 3.86
		600	$ 3.78
		1500	$ 3.48
		3000	$ 3.27

Description

General part information

QTH-030 Series

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Documents

Technical documentation and resources

Datasheet

QTH-020-01-F-D-DP-A Datasheet 02

Datasheet

QTH-030-02-F-D-A-K-TR
