AP62301Z6-EVM

Active

Diodes Inc

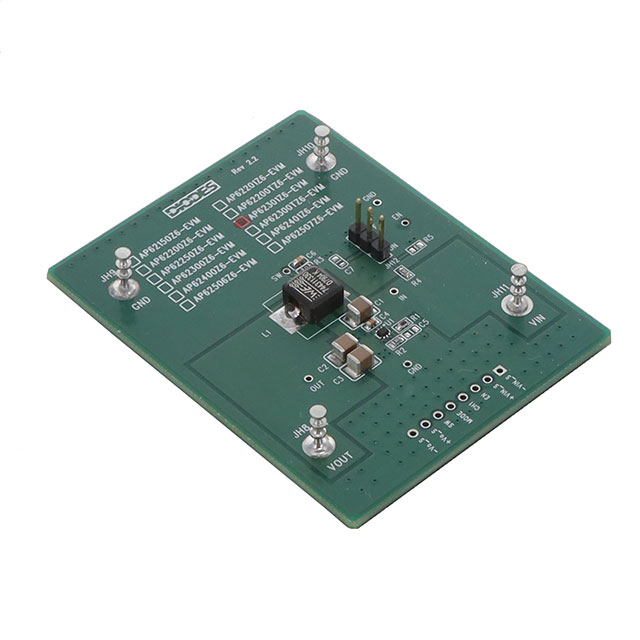

EVAL BOARD FOR AP62301

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP62301Z6-EVM

Board Type	Fully Populated
Current - Output	3 A
Frequency - Switching	750 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP62301
Voltage - Input [Max]	18 V
Voltage - Input [Min]	4.2 V
Voltage - Output [Max]	7 V
Voltage - Output [Min]	0.8 V

AP62301 Series

4.2V TO 18V INPUT, 3A LOW IQ SYNCHRONOUS BUCK CONVERTER, PWM

Part	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Board Type	Regulator Topology	Voltage - Output [Min]	Voltage - Output [Max]	Outputs and Type	Outputs and Type	Current - Output	Frequency - Switching	Utilized IC / Part	Supplied Contents	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Output Type	Output Configuration	Function	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Supplier Device Package	Mounting Type	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Topology
Diodes Inc AP62301Z6-EVM	18 V	4.2 V	DC/DC Step Down	Fully Populated	Buck	0.8 V	7 V	Non-Isolated	1	3 A	750 kHz	AP62301	Board(s)
Diodes Inc AP62301Z6-7										3 A	750 kHz			0.8 V	4.2 V	Adjustable	Positive	Step-Down	18 V	7 V	SOT-563	Surface Mount	1	SOT-563 SOT-666	85 °C	-40 °C	Buck
Diodes Inc AP62301WU-EVM	18 V	4.2 V	DC/DC Step Down	Fully Populated	Buck	0.8 V	7 V	Non-Isolated	1	3 A	750 kHz	AP62301	Board(s)
Diodes Inc AP62301WU-7										3 A	750 kHz			0.8 V	4.2 V	Adjustable	Positive	Step-Down	18 V	7 V		Surface Mount	1	SOT-23-6 Thin TSOT-23-6	85 °C	-40 °C	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP62301 Series

The AP62300/AP62301/AP62300T is a 3A, synchronous buck converter with a wide input voltage range of 4.2V to 18V. The device fully integrates a 75mΩ high-side power MOSFET and a 45mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

Documents

Technical documentation and resources

No documents available
