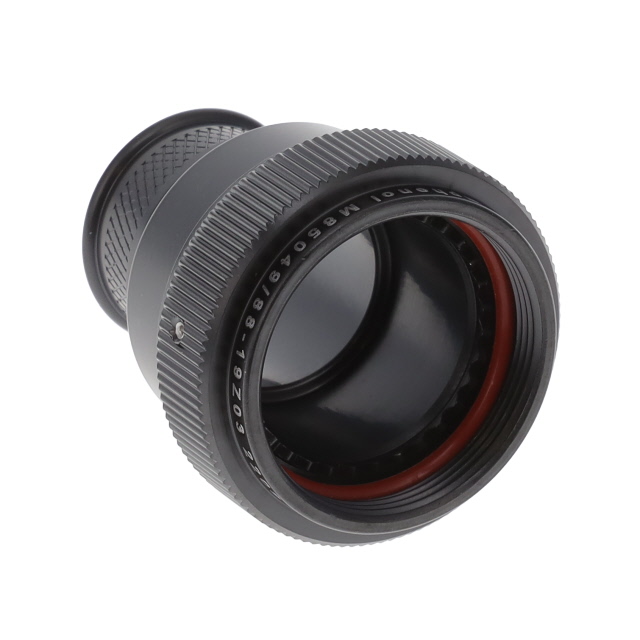

M85049/88-19Z03

Active

Amphenol Interconnect India

CONN BACKSH BANDING SZ19 F BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/88-19Z03

Active

Amphenol Interconnect India

CONN BACKSH BANDING SZ19 F BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/88-19Z03

Cable Exit	180 °
Cable Opening [diameter]	19.3 mm
Cable Opening [diameter]	0.76 in
Color	Black
Diameter - Outside [diameter]	38.61 mm
Diameter - Outside [diameter]	1.52 in
Features	Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	19
Shell Size - Insert	F
Shielding	Unshielded
Type	Banding, Backshell

M85049/88 Series

Part	Features	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Material	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Cable Exit	Plating	For Use With/Related Products	Color	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/88-19Z03	Self Locking	Unshielded	19.3 mm	0.76 in	Aluminum Alloy	Backshell Banding	38.61 mm	1.52 in	19	F	180 °	Zinc Cobalt	MIL-DTL-38999 Series III IV	Black
Amphenol Interconnect India M85049/88-25W03	Self Locking	Unshielded			Aluminum Alloy	Backshell Banding	48.03 mm	1.891 in	25	J	180 °	Cadmium	MIL-DTL-38999 Series III IV	Olive Drab	25.65 mm	1.01 in
Amphenol Interconnect India M85049/88-17Z02	Self Locking	Unshielded			Aluminum Alloy	Backshell Banding	35.81 mm	1.41 in		17 E	180 °	Zinc Cobalt	MIL-DTL-38999 Series III IV	Black	12.95 mm	0.51 in
Amphenol Interconnect India M85049/88-19Z02	Self Locking	Unshielded	16.26 mm	0.64 in	Aluminum Alloy	Backshell Banding	38.61 mm	1.52 in	19	F	180 °	Zinc Cobalt	MIL-DTL-38999 Series III IV	Black
Amphenol Interconnect India M85049/88-13W03	Self Locking	Unshielded	11.43 mm	0.45 in	Aluminum Alloy	Backshell Banding	29.36 mm	1.156 in	13	C	180 °	Cadmium	MIL-DTL-38999 Series III IV	Olive Drab
Amphenol Interconnect India M85049/88-15N03	Self Locking	Unshielded			Aluminum Alloy	Backshell Banding	32.54 mm	1.281 in	15	D	180 °	Electroless Nickel	MIL-DTL-38999 Series III IV	Silver	14.48 mm	0.57 in
Amphenol Interconnect India M85049/88-17Z03	Self Locking	Unshielded	16.26 mm	0.64 in	Aluminum Alloy	Backshell Banding	35.81 mm	1.41 in		17 E	180 °	Zinc Cobalt	MIL-DTL-38999 Series III IV	Black
Amphenol Interconnect India M85049/88-25Z03	Self Locking	Unshielded			Aluminum Alloy	Backshell Banding	48.01 mm	1.89 "	25	J	180 °	Zinc Cobalt	MIL-DTL-38999 Series III IV	Black	25.65 mm	1.01 in
Amphenol Interconnect India M85049/88-15W02	Self Locking	Unshielded	11.43 mm	0.45 in	Aluminum Alloy	Backshell Banding	32.54 mm	1.281 in	15	D	180 °	Cadmium	MIL-DTL-38999 Series III IV	Olive Drab
Amphenol Interconnect India M85049/88-25N03	Self Locking	Unshielded			Aluminum Alloy	Backshell Banding	48.03 mm	1.891 in	25	J	180 °	Electroless Nickel	MIL-DTL-38999 Series III IV	Silver	25.65 mm	1.01 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.31
		10	$ 45.25
		25	$ 43.51
		50	$ 42.06
		100	$ 39.74
		250	$ 38.58
	Bulk	1	$ 555.65

Description

General part information

M85049/88 Series

Black Connector Backshell, Banding 19, F
