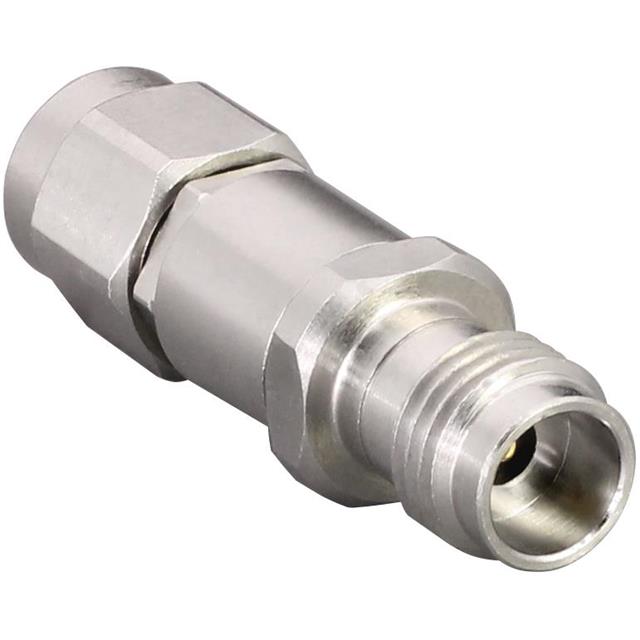

ADP-2.4F-2.92M

Active

TE Connectivity Linx

2.4 MM JACK (FEMALE SOCKET) TO 2

Search across all available documentation for this part.

Active

TE Connectivity Linx

2.4 MM JACK (FEMALE SOCKET) TO 2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADP-2.4F-2.92M	ADP-2.4 Series

Adapter Series [Max]	2.92 mm	2.4 - 2.92 mm
Adapter Series [Min]	2.4 mm	2.4 mm
Adapter Type	Plug to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	2.4 mm	2.4 - 2.92 mm
Convert From (Adapter End)	-	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin	OS-2.9 Jack, Female Socket, 2.4mm (APC-2.4, OS-50) Plug, Male Pin, 2.92mm (OS-2.9) Plug, Male Pin
Convert To (Adapter End)	-	2.4 - 2.92 mm
Frequency - Max [Max]	40 GHz	40 - 50 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

2.4 MM JACK (FEMALE SOCKET) TO 2

Part	Center Contact Material	Mounting Type	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Mating Cycles	Style	Impedance	Adapter Series [Max]	Adapter Series [Min]	Convert From (Adapter End)	Conversion Type	Body Material	Convert From (Adapter End)
TE Connectivity Linx ADP-2.4F-2.92F	Beryllium Copper	Free Hanging (In-Line)	Gold	Jack to Jack	40 GHz	Female to Female	-40 °C	105 ░C	2.92 mm	OS-2.9 Jack, Female Socket	500	Straight	50 Ohms	2.92 mm	2.4 mm	2.4 mm	Same Series	Stainless Steel
TE Connectivity Linx ADP-2.4M-2.92F	Beryllium Copper	Free Hanging (In-Line)	Gold	Plug to Jack	40 GHz		-40 °C	105 ░C		2.4mm (APC-2.4, OS-50) Plug, Male Pin	500	Straight	50 Ohms	2.92 mm	2.4 mm	2.92 mm	Between Series	Stainless Steel	Jack, Female Socket, OS-2.9
TE Connectivity Linx ADP-2.4F-2.4F	Beryllium Copper	Free Hanging (In-Line)	Gold	Jack to Jack	50 GHz	Female to Female	-40 °C	105 ░C	2.4 mm		500	Straight	50 Ohms	2.4 mm	2.4 mm	2.4 mm	Same Series	Stainless Steel
TE Connectivity Linx ADP-2.4F-2.92M	Beryllium Copper	Free Hanging (In-Line)	Gold	Plug to Jack	40 GHz		-40 °C	105 ░C		2.92mm (OS-2.9) Plug, Male Pin	500	Straight	50 Ohms	2.92 mm	2.4 mm	2.4 mm	Same Series	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
