JWD-107-7

Unknown

TE Connectivity Potter & Brumfield Relays

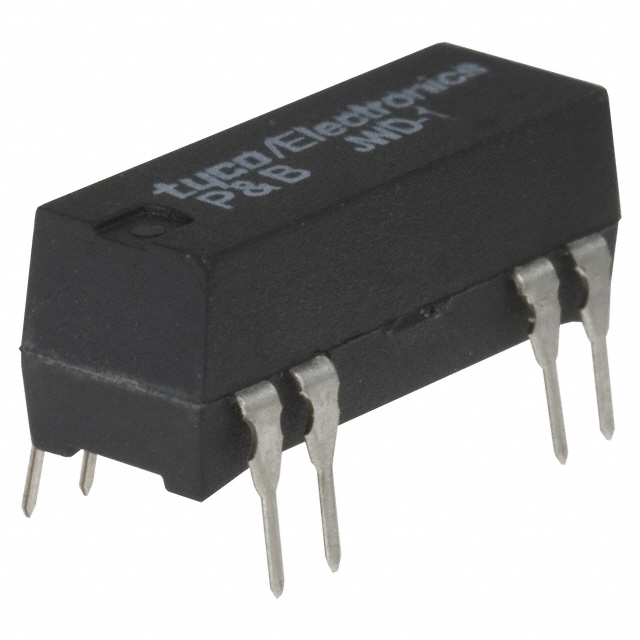

RELAY REED SPST 500MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWD-107-7

Unknown

TE Connectivity Potter & Brumfield Relays

RELAY REED SPST 500MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWD-107-7

Coil Current	10 mA
Coil Resistance	1.2 kOhms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Ruthenium (Ru)
Contact Rating (Current)	0.5 A
Features	Diode
Mounting Type	Through Hole
Must Operate Voltage	9.6 VDC
Must Release Voltage	1 VDC
Operate Time	1.5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Release Time	0.5 ms
Switching Voltage [Max]	100 VDC
Termination Style	PC Pin

JWD Series

Part	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Termination Style	Mounting Type	Coil Type	Must Release Voltage	Coil Voltage	Must Operate Voltage	Release Time	Operate Time	Switching Voltage [Max]	Contact Form	Contact Rating (Current)	Contact Material	Features	Switching Voltage
TE Connectivity Potter & Brumfield Relays JWD-171-15	2.2 kOhms	-35 °C	85 °C	10.9 mA	PC Pin	Through Hole	Non Latching	2 VDC	24 VDC	19.2 VDC	0.5 ms	1.5 ms	100 VDC	SPST-NC (1 Form B)	0.5 A	Ruthenium (Ru)
TE Connectivity Potter & Brumfield Relays JWD-107-7	1.2 kOhms	-35 °C	85 °C	10 mA	PC Pin	Through Hole	Non Latching	1 VDC	12 VDC	9.6 VDC	0.5 ms	1.5 ms	100 VDC	SPST-NO (1 Form A)	0.5 A	Ruthenium (Ru)	Diode
TE Connectivity Potter & Brumfield Relays JWD-171-28	2.2 kOhms	-35 °C	85 °C	10.9 mA	PC Pin	Through Hole	Non Latching	2 VDC	24 VDC	19.2 VDC	0.5 ms	1.5 ms	100 VDC	DPST-NO (2 Form A)	0.5 A	Ruthenium (Ru)	Diode
TE Connectivity Potter & Brumfield Relays JWD-171-19	1.2 kOhms	-35 °C	85 °C	10 mA	PC Pin	Through Hole	Non Latching	1 VDC	12 VDC	9.6 VDC	0.5 ms	1.5 ms	100 VDC	SPST-NC (1 Form B)	0.5 A	Ruthenium (Ru)	Diode
TE Connectivity Potter & Brumfield Relays JWD-107-3	1.2 kOhms	-35 °C	85 °C	10 mA	PC Pin	Through Hole	Non Latching	1 VDC	12 VDC	9.6 VDC	0.5 ms	1.5 ms	100 VDC	SPST-NO (1 Form A)	0.5 A	Ruthenium (Ru)
TE Connectivity Potter & Brumfield Relays JWD-172-161	1 kOhms	-35 °C	85 °C	12 mA	PC Pin	Through Hole	Non Latching	1 VDC	12 VDC	9.6 VDC	3 ms	1.5 ms		SPDT (1 Form C)	0.5 A	Ruthenium (Ru)	Diode	28 VDC
TE Connectivity Potter & Brumfield Relays JWD-172-155	200 Ohms	-35 °C	85 °C		PC Pin	Through Hole	Non Latching	0.5 VDC	5 VDC	3.8 VDC	3 ms	1.5 ms		SPDT (1 Form C)	0.5 A	Ruthenium (Ru)		28 VDC
TE Connectivity Potter & Brumfield Relays JWD-172-3	500 Ohms	-35 °C	85 °C	24 mA	PC Pin	Through Hole	Non Latching	1 VDC	12 VDC	9.6 VDC	3 ms	1.5 ms		SPDT (1 Form C)	0.5 A	Ruthenium (Ru)		28 VDC
TE Connectivity Potter & Brumfield Relays JWD-171-21	200 Ohms	-35 °C	85 °C		PC Pin	Through Hole	Non Latching	0.5 VDC	5 VDC	3.8 VDC	0.5 ms	1.5 ms	100 VDC	DPST-NO (2 Form A)	0.5 A	Ruthenium (Ru)
TE Connectivity Potter & Brumfield Relays JWD-107-1	500 Ohms	-35 °C	85 °C	10 mA	PC Pin	Through Hole	Non Latching	0.5 VDC	5 VDC	3.8 VDC	0.5 ms	1.5 ms	100 VDC	SPST-NO (1 Form A)	0.5 A	Ruthenium (Ru)
