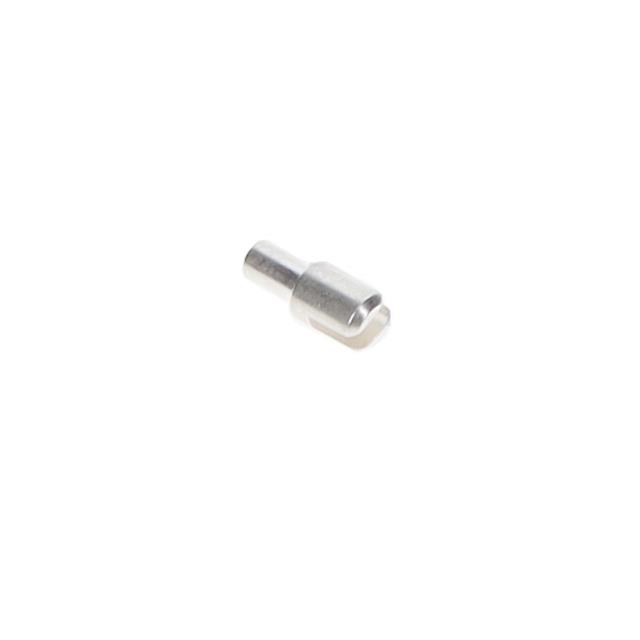

2106-2-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.072DIA SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSolder Terminals Slotted (metric)
2106-2-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.072DIA SILVER
Deep-Dive with AI
DocumentsSolder Terminals Slotted (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106-2-01-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 0.094 in |
| Length - Above Flange [custom] | 2.39 mm |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Length - Overall [x] | 0.176 in |
| Length - Overall [x] | 4.47 mm |
| Mounting Hole Diameter [diameter] | 1.32 mm |
| Mounting Hole Diameter [diameter] | 0.052 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.83 mm |
| Pin Size - Above Flange [diameter] | 0.072 in |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.01 | |
| 10 | $ 0.85 | |||
| 100 | $ 0.77 | |||
| 1000 | $ 0.56 | |||
| 5000 | $ 0.49 | |||
| 10000 | $ 0.46 | |||
Description
General part information
2106-2 Series
PC Pin Terminal Connector Through Hole Silver 0.072" (1.83mm) Dia
