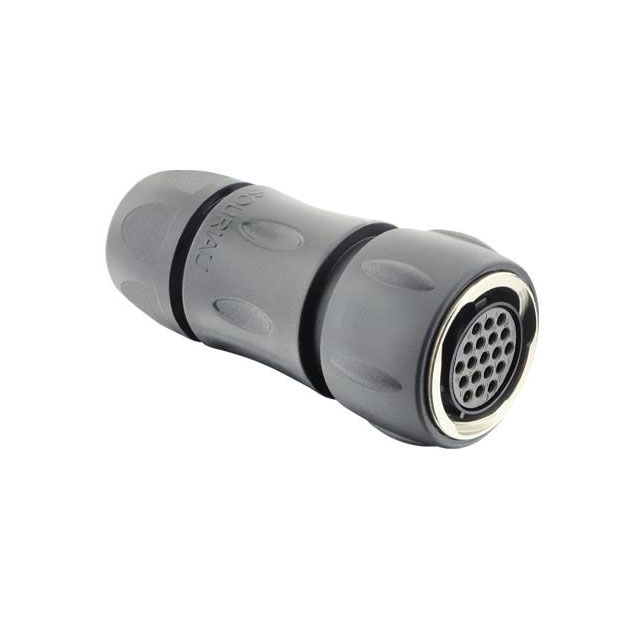

UTGX6JC1419S

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 19POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTGX6JC1419S

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 19POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTGX6JC1419S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Housing Color	Black
Includes	1 Backshell, 1 Connector, 1 O-Ring, 1 Seal
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Type	For Female Sockets

UTGX6 Series

...

Part	Mounting Type	Contact Material	Current Rating (Amps)	Material Flammability Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions	Features	Color	Insert Material	Voltage Rating	Shielding	Applications	Fastening Type	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Shell Size - Insert	Current Rating (Amps)	Backshell Material, Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Includes	Contact Shape	Note	Contact Type	Housing Color	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UTGX614E15S	Free Hanging (In-Line)	Brass	5 A 12 A	UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	15	Coupling Nut UV Resistant	Black	Polychloroprene	250 VDC 600 V	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic	14	15	Female Sockets Plug
Souriau-Sunbank by Eaton UTGX6JC14E12P	Free Hanging (In-Line)	Brass		UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	12	Backshell Coupling Nut UV Resistant	Black	Polychloroprene	250 VDC 600 V	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic			Male Pins Plug	14-12	10A 5A	Nylon Polyamide (PA)	14 mm	7 mm	0.551 in	0.276 in
Souriau-Sunbank by Eaton UTGX6142G1P	Free Hanging (In-Line)			UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K		Coupling Nut UV Resistant		Nylon Polyamide (PA)		Unshielded		Bayonet Lock				Plug Housing	14-2G1							For Male Pins	2	3	1	1 Connector 1 O-Ring 1 Seal	Circular	Contacts Not Included	Crimp	Black	8
Souriau-Sunbank by Eaton UTGX6JC1419S	Free Hanging (In-Line)			UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	19	Backshell Coupling Nut UV Resistant		Nylon Polyamide (PA)		Unshielded		Bayonet Lock				Plug Housing								For Female Sockets				1 Backshell 1 Connector 1 O-Ring 1 Seal	Circular	Contacts Not Included	Crimp	Black	20	19	14
Souriau-Sunbank by Eaton UTGX6JC12E10P	Free Hanging (In-Line)	Brass	4.5 A	UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	10	Backshell Coupling Nut UV Resistant	Black	Polychloroprene	250 VDC	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic			Male Pins Plug			Nylon Polyamide (PA)		5 mm	0.472 in	0.197 in													12 mm
Souriau-Sunbank by Eaton UTGX6JC12E14S	Free Hanging (In-Line)	Brass	4.5 A	UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	14	Backshell Coupling Nut UV Resistant	Black	Polychloroprene	250 VDC	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic	12	14	Female Sockets Plug			Nylon Polyamide (PA)		5 mm	0.472 in	0.197 in													12 mm
Souriau-Sunbank by Eaton UTGX6JC14E15S	Free Hanging (In-Line)	Brass	5 A 12 A	UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K	15	Backshell Coupling Nut UV Resistant	Black	Polychloroprene	250 VDC 600 V	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic	14	15	Female Sockets Plug			Nylon Polyamide (PA)	14 mm	7 mm	0.551 in	0.276 in
Souriau-Sunbank by Eaton UTGX612E3P	Free Hanging (In-Line)	Brass	13 A	UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K		Coupling Nut UV Resistant	Black	Polychloroprene	600 V	Unshielded	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Plastic			Male Pins Plug	12-3
Souriau-Sunbank by Eaton UTGX6147S	Free Hanging (In-Line)			UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K		Coupling Nut UV Resistant		Nylon Polyamide (PA)		Unshielded		Bayonet Lock		7	14	Plug Housing								For Female Sockets				1 Connector 1 O-Ring 1 Seal	Circular	Contacts Not Included	Crimp	Black	16				1	6
Souriau-Sunbank by Eaton UTGX6103P	Free Hanging (In-Line)			UL94 V-0	N	-40 °C	105 ░C	IP68 IP69K		Coupling Nut UV Resistant		Nylon Polyamide (PA)		Unshielded		Bayonet Lock				Plug Housing	10-3							For Male Pins	2	3	1	1 Connector 1 O-Ring 1 Seal	Circular	Contacts Not Included	Crimp	Black	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 30.25
		10	$ 29.86
		25	$ 29.37
Digikey	Bag	1	$ 11.87
		10	$ 10.29
		25	$ 9.95

Description

General part information

UTGX6 Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, UV Resistant
