MSTC1001

Active

Amphenol Fiber Systems International

ST CONNECTOR, MM, 128UM, COTS VE

Search across all available documentation for this part.

Active

Amphenol Fiber Systems International

ST CONNECTOR, MM, 128UM, COTS VE

Technical Specifications

Parameters and characteristics for this part

ST CONNECTOR, MM, 128UM, COTS VE

Part	Mode	Mounting Type	Boot Color	Operating Temperature [Min]	Operating Temperature [Max]	Simplex/Duplex	Connector Style	Reflection	Body Material	Connector Type	Mating Cycles	Attenuation - Typ	Fastening Type	Housing Color	Features	Ferrule Material
Amphenol Fiber Systems International MSTC1001	Multimode	Free Hanging (In-Line)	Black	-55 °C	125 °C	Simplex	ST	-30 dB	Stainless Steel	Plug	500	-1.3 dB	Bayonet Lock	Silver	Strain Relief	Zirconia

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

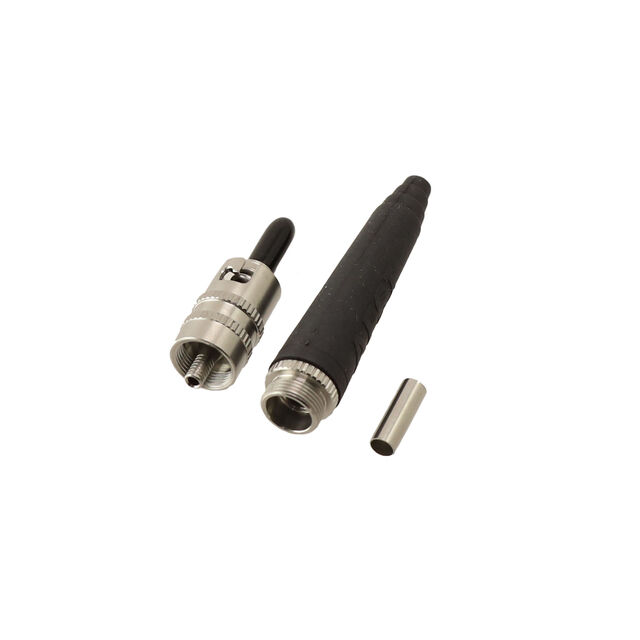

Fiber Optic Plug Connector ST Simplex Silver

Technical documentation and resources
