Q-2C0480005036i

Active

Amphenol Custom Cable

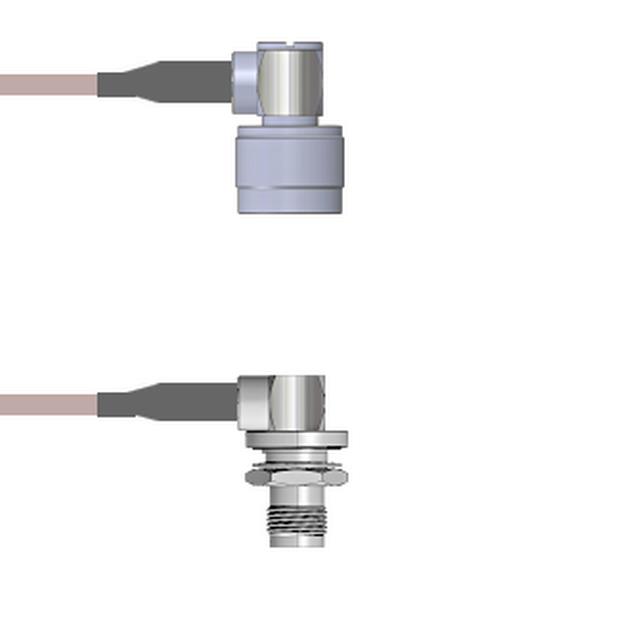

CBL ASSY NTYPE-TNC PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C0480005036i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C0480005036i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms

Q-2C0480 Series

Part	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Feature	Features	Color	2nd Connector Mounting Type	2nd Contact Gender	Overall Impedance	Length	Length	Length	1st Connector Mounting Type	Cable Type	1st Connector	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-2C0480005048i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms	1200 mm	4 ft	48 in	Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480003009i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Black	Panel Mount	Female	50 Ohms	228.6 mm		9 "	Free Hanging (In-Line)	RG-174	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480003.75M	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Black	Panel Mount	Female	50 Ohms	750 mm		29.53 "	Free Hanging (In-Line)	RG-174	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480005036i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms	91.44 cm		36 in	Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480005018i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms				Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C0480003036i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Black	Panel Mount	Female	50 Ohms	91.44 cm		36 in	Free Hanging (In-Line)	RG-174	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480003048i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Black	Panel Mount	Female	50 Ohms	1200 mm	4 ft	48 in	Free Hanging (In-Line)	RG-174	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C04800050.5M	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms	50 cm		19.69 "	Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480005003i	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms	76.2 mm		3 in	Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle
Amphenol Custom Cable Q-2C0480005.75M	11 GHz	Male	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	Female	50 Ohms	750 mm		29.53 "	Free Hanging (In-Line)	RG-316	N-Type Plug Right Angle	TNC Jack Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.95
		25	$ 102.94
		50	$ 100.93
		100	$ 98.92
		250	$ 96.91

Description

General part information

Q-2C0480 Series

Cable Assembly Coaxial N-Type to TNC RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
