Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1777060 | MSTBV Series |
|---|---|---|
| Color | Green | Green |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 0.154 " | 0.154 " |
| Contact Tail Length | 3.9 mm | 3.9 mm |
| Current - IEC | 12 A | 12 - 16 A |
| Current - UL | 12 A | 12 - 16 A |
| Features | Mating and Mounting Flange | Mating and Mounting Flange, Ejectors |
| Header Orientation | Vertical | Vertical |
| Housing Material | Polybutylene Terephthalate (PBT) | Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.472 in | 0.472 in |
| Insulation Height | 12 mm | 12 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 20 | 9 - 20 |
| Pitch [x] | 5 mm | 5 - 5.08 mm |
| Pitch [x] | 0.197 in | 0.197 - 0.2 in |
| Positions Per Level | 20 | 9 - 20 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 400 V | 250 - 400 V |
| Voltage - UL | 300 V | 300 V |
MSTBV Series

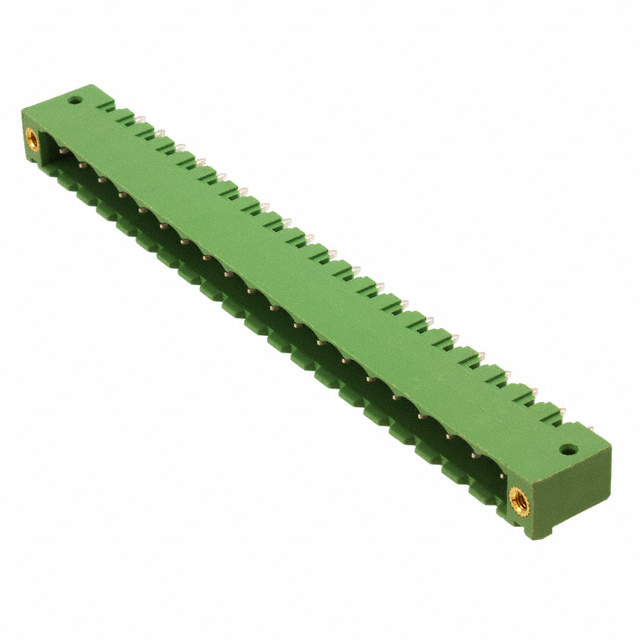

Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
| Part | Housing Material | Termination Style | Header Orientation | Type | Number of Positions | Current - IEC | Material Flammability Rating | Mounting Type | Number of Levels | Features | Voltage - UL | Pitch [x] | Pitch [x] | Voltage - IEC | Contact Tail Length | Contact Tail Length | Positions Per Level | Insulation Height | Insulation Height | Contact Mating Finish | Color | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1924596 | Polyamide (PA), Nylon | Solder | Vertical | Header, Male Pins, Shrouded (4 Side) | 9 | 16 A | UL94 V-0 | Through Hole | 1 | Mating and Mounting Flange | 300 V | 0.2 in | 5.08 mm | 400 V | 0.154 " | 3.9 mm | 9 | 0.472 in | 12 mm | Tin | Green | 16 A |
Phoenix Contact 1808641 | Polybutylene Terephthalate (PBT) | Solder | Vertical | Header, Male Pins, Shrouded (4 Side) | 20 | 12 A | UL94 V-0 | Through Hole | 1 | Ejectors | 300 V | 0.2 in | 5.08 mm | 400 V | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm | Tin | Green | 12 A |
Phoenix Contact 1777060 | Polybutylene Terephthalate (PBT) | Solder | Vertical | Header, Male Pins, Shrouded (4 Side) | 20 | 12 A | UL94 V-0 | Through Hole | 1 | Mating and Mounting Flange | 300 V | 0.197 in | 5 mm | 400 V | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm | Tin | Green | 12 A |
Phoenix Contact 1756951 | Solder | Vertical | Header, Male Pins, Shrouded (4 Side) | 20 | 12 A | Through Hole | 1 | Mating and Mounting Flange | 0.2 in | 5.08 mm | 250 V | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm | Tin | Green |
