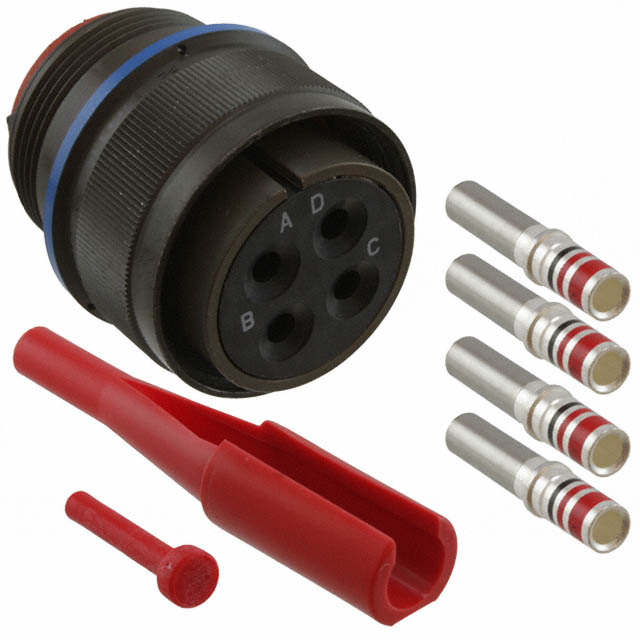

MS3456W22-22S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3456W22-22S

Applications	Aviation, Military, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Fluid Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22
Shielding	Unshielded
Termination	Crimp

Part	Shell Finish	Color	Shell Material	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shielding	Applications	Connector Type	Orientation	Mounting Type	Contact Finish - Mating	Number of Positions	Termination	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Features	Shell Size - Insert
Amphenol Aerospace Operations MS3456W22-22S	Olive Drab Cadmium	Olive Drab	Aluminum	Military	1.27 µm	50 µin	MIL-DTL-5015	-55 °C	347 °F	Metal	Unshielded	Automotive Aviation Military	Female Sockets Plug	N	Free Hanging (In-Line)	Gold	4	Crimp	Copper Alloy	22	22	Fluid Resistant	Coupling Nut
Amphenol Aerospace Operations MS3456W22-14S	Olive Drab Cadmium	Olive Drab	Aluminum	Military	1.27 µm	50 µin	MIL-DTL-5015	-55 °C	347 °F	Metal	Unshielded	Automotive Aviation Military	Female Sockets Plug	N	Free Hanging (In-Line)	Gold	19	Crimp	Copper Alloy			Fluid Resistant	Coupling Nut	22-14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Plug, Female Sockets Crimp
