W7382-2PG-P-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 9.37

General part information

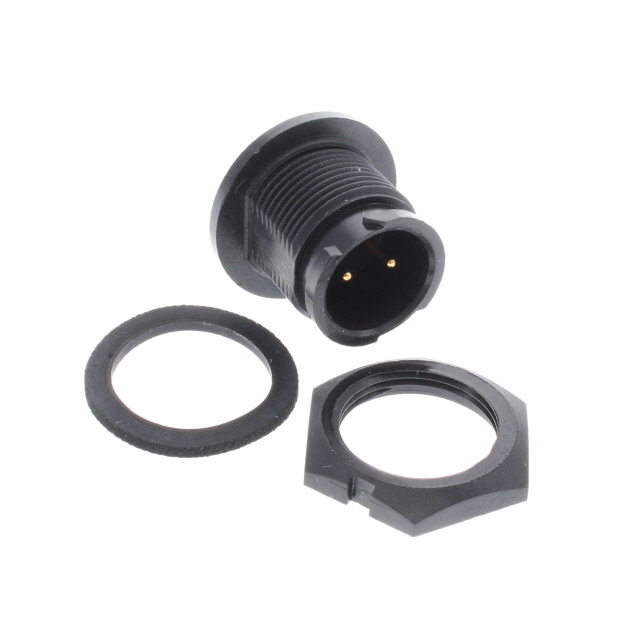

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	W7382-2PG-P-3ES	W7382-2 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant	UV Resistant
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

CONN RCPT FMALE 2POS SOLDER CUP

Part	Fastening Type	Contact Finish - Mating	Mounting Feature	Applications	Contact Material	Backshell Material, Plating	Current Rating (Amps)	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Connector Type	Insert Material	Voltage Rating	Color	Number of Positions	Features	Primary Material
Conxall/Switchcraft W7382-2SG-P-300	Bayonet Lock	Gold	Bulkhead - Front Side Nut	Automotive, Communication Systems, Instrumentation	Copper Alloy	Thermoplastic	Varies by Wire Gauge	Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Keyed	Receptacle, Female Sockets	Thermoplastic	300 VAC	Black	2	UV Resistant	Plastic
Conxall/Switchcraft W7382-2PG-P-3ES	Bayonet Lock	Gold	Bulkhead - Front Side Nut	Automotive, Communication Systems, Instrumentation	Copper Alloy	Thermoplastic	Varies by Wire Gauge	Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Keyed	Male Pins, Receptacle	Thermoplastic	300 VAC	Black	2	UV Resistant	Plastic
