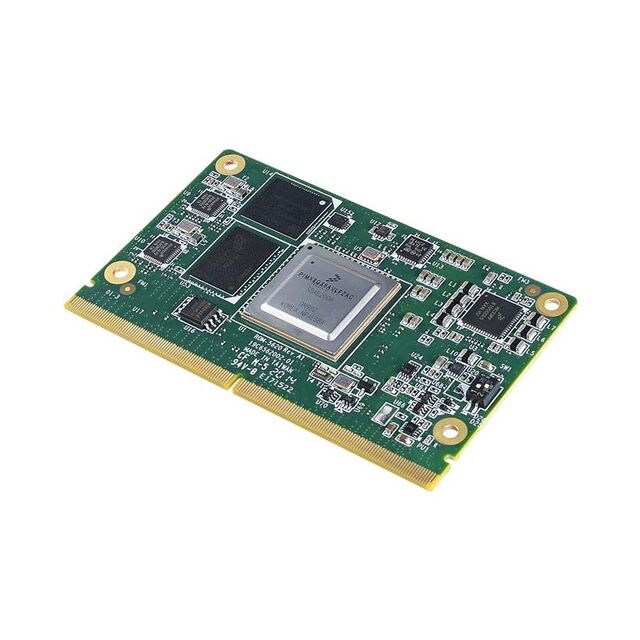

ROM-5620WU-OEA1E

Active

Advantech Corp

SBC 1.2GHZ 4 CORE -/2GB

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.2GHZ 4 CORE -/2GB

Technical Specifications

Parameters and characteristics for this part

Specification	ROM-5620WU-OEA1E

Architecture	MPU
Connectivity	SPI, USB, UART, Ethernet, MMC/SD/SDIO, I2S, CANbus, PCIe, I2C
Core Processor	ARM® Cortex®-M4F, ARM® Cortex®-A35
Flash Size	16 GB
Number of I/O	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Peripherals	LVDS
RAM Size	2 GB
Speed	1.2 GHz

Part	Peripherals	Package / Case	Speed	Flash Size	Core Processor	Architecture	Number of I/O	RAM Size	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]
Advantech Corp ROM-5620WU-OEA1E	LVDS	Module	1.2 GHz	16 GB	ARM® Cortex®-A35 ARM® Cortex®-M4F	MPU	12	2 GB	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB	85 °C	-40 °C
Advantech Corp ROM-5620CU-OEA1E	LVDS	Module	1.2 GHz	16 GB	ARM® Cortex®-A35 ARM® Cortex®-M4F	MPU	12	2 GB	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 218.40

General part information

ARM® Cortex®-A35, ARM® Cortex®-M4F System On Chip (SOC) IC ROM 1.2GHz

Technical documentation and resources

No documents available
