929667-01-35-I

Active

3M (TC)

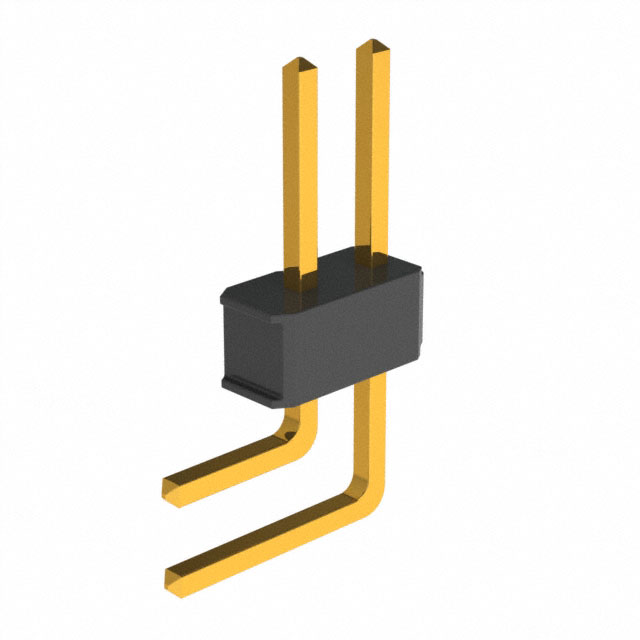

CONN HEADER R/A 70POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929667-01-35-I

Active

3M (TC)

CONN HEADER R/A 70POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929667-01-35-I

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.45 mm
Insulation Height	0.215 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	70
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929667 Series

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Number of Positions	Contact Shape	Connector Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Termination	Contact Finish - Post	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]
3M (TC) 929667-02-20-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	40	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin
3M (TC) 929667-04-04-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	8	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin	0.145 in	3.68 mm
3M (TC) 929667-02-04-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	8	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin
3M (TC) 929667-04-05-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	10	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin	0.145 in	3.68 mm
3M (TC) 929667-02-03-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	6	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin
3M (TC) 929667-01-35-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	70	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin		2.79 mm	0.11 in
3M (TC) 929667-04-10-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	20	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin	0.145 in	3.68 mm
3M (TC) 929667-04-01-EU	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT)	2	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded			Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin	0.145 in	3.68 mm
3M (TC) 929667-04-29-I	2.54 mm	0.1 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	58	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin	0.145 in	3.68 mm
3M (TC) 929667-02-20-EU	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT)	40	Square	Header	2	10 çin	0.25 çm	2.5 A	Solder	Gold	Unshrouded	0.1 in	2.54 mm	Copper Alloy	All	Push-Pull	UL94 V-0	Through Hole Right Angle	0.235 in	5.97 mm	-40 °C	105 ░C	5.45 mm	0.215 in	Gold	Black	10 çin	0.25 çm	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.78
		10	$ 15.41
		100	$ 12.70
		500	$ 11.60

Description

General part information

929667 Series

Connector Header Through Hole, Right Angle 70 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
