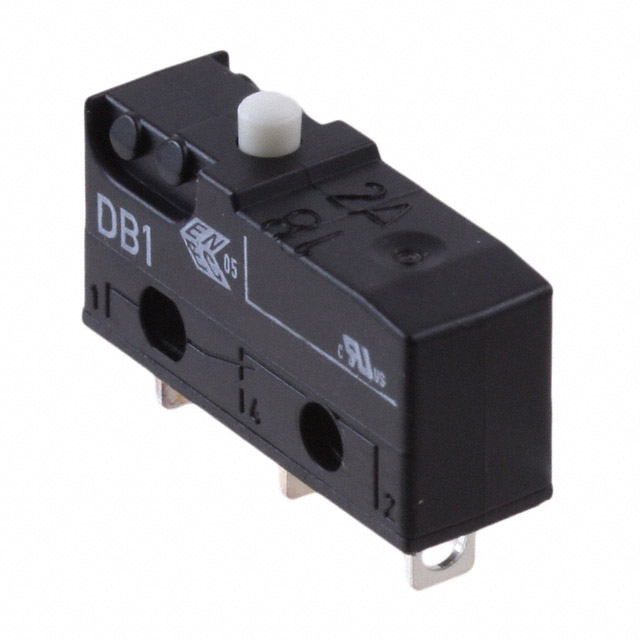

Specification	DB1C-A1AA

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating	5 A, 1 A
Differential Travel (Linear)	0.004 in
Electrical Life (Cycles)	6000 Cycles
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Mechanical Life (Cycles)	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	150 gf
Operating Position (Length)	0.33 in
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Overtravel (Linear)	0.025 in
Pretravel (Length)	0.04 in
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	48 V

DB1C Series

Part	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Operating Force	Circuit	Switch Function	Pretravel (Length)	Mechanical Life (Cycles)	Electrical Life (Cycles)	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Voltage Rating - AC	Overtravel (Linear)	Actuator Type	Differential Travel (Linear)	Voltage Rating - DC	Operating Position (Length)	Quick Connect Size (0.110")
ZF Electronics DB1C-A1MC	Chassis Mount	120 °C	-40 °C	1 A 5 A	22 gf	SPDT	On-Mom	0.394 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.158 in	Lever Straight	0.055 in	48 V	0.492 in
ZF Electronics DB1C-A1RC	Chassis Mount	120 °C	-40 °C	1 A 5 A	55 gf	SPDT	On-Mom	0.178 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.079 in	Lever Roller	0.025 in	48 V	0.638 in
ZF Electronics DB1C-A1AA	Chassis Mount	120 °C	-40 °C	1 A 5 A	150 gf	SPDT	On-Mom	0.04 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.025 in	Round (Pin Plunger)	0.004 in	48 V	0.33 in
ZF Electronics DB1C-B1LC	Chassis Mount	120 °C	-40 °C	1 A 5 A	50 gf	SPDT	On-Mom	0.178 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Quick Connect	125 V	0.079 in 0.081 in	Lever Straight	0.025 in	48 V	0.437 in	0.11 in
ZF Electronics DB1CB1AA	Chassis Mount	120 °C	-40 °C	1 A 5 A	150 gf	SPDT	On-Mom	0.04 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Quick Connect	125 V	0.025 in	Round (Pin Plunger)	0.004 in	48 V	0.33 in	0.11 in
ZF Electronics DB1C-A1RB	Chassis Mount	120 °C	-40 °C	1 A 5 A	65 gf	SPDT	On-Mom	0.157 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.079 in	Lever Roller	0.02 in	48 V	0.622 in
ZF Electronics DB1CB1LB	Chassis Mount	120 °C	-40 °C	1 A 5 A	60 gf	SPDT	On-Mom	0.157 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Quick Connect	125 V	0.079 in	Lever Straight	0.02 in	48 V	0.42 in	0.11 in
ZF Electronics DB1C-A1LB	Chassis Mount	120 °C	-40 °C	1 A 5 A	60 gf	SPDT	On-Mom	0.157 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.079 in	Lever Straight	0.02 in	48 V	0.42 in
ZF Electronics DB1C-C1AA	Through Hole	120 °C	-40 °C	1 A 5 A	150 gf	SPDT	On-Mom	0.04 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	PC Pin	125 V	0.025 in	Round (Pin Plunger)	0.004 in	48 V	0.33 in
ZF Electronics DB1C-A1LC	Chassis Mount	120 °C	-40 °C	1 A 5 A	50 gf	SPDT	On-Mom	0.178 in	15000000 Cycles	6000 Cycles	Dust Protected	IP50	Solder Lug	125 V	0.079 in 0.081 in	Lever Straight	0.025 in	48 V	0.437 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

DB1C-A1AA | Datasheet
