IXA4I1200UC-TUB

Obsolete

IXYS

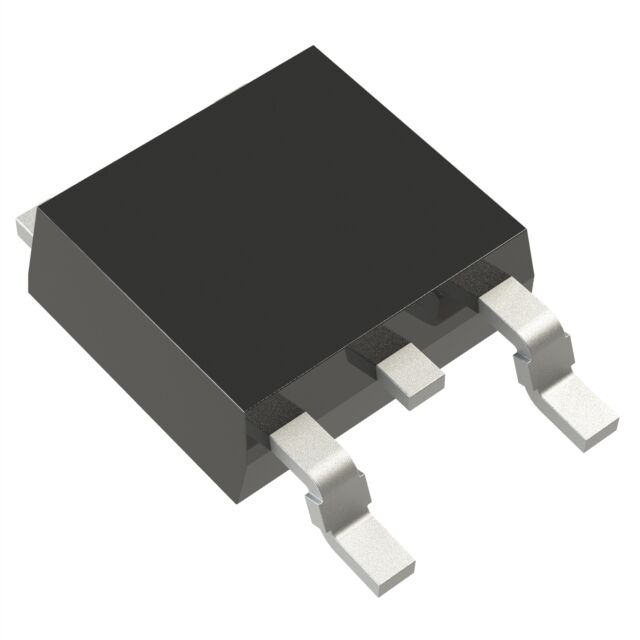

IGBT PT 1200V 9A TO-252AA

Search across all available documentation for this part.

Obsolete

IXYS

IGBT PT 1200V 9A TO-252AA

Technical Specifications

Parameters and characteristics for this part

Specification	IXA4I1200UC-TUB

Current - Collector (Ic) (Max) [Max]	9 A
Gate Charge	12 nC
IGBT Type	PT
Mounting Type	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	45 W
Supplier Device Package	TO-252AA
Switching Energy	400 µJ, 300 µJ
Td (on/off) @ 25°C	70 ns
Td (on/off) @ 25°C	250 ns
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Switching Energy	Td (on/off) @ 25°C	Td (on/off) @ 25°C	IGBT Type	Mounting Type	Vce(on) (Max) @ Vge, Ic	Gate Charge	Supplier Device Package
IXYS IXA4I1200UC-TUB	DPAK (2 Leads + Tab) SC-63 TO-252-3	1200 V	45 W	9 A	300 µJ 400 µJ	70 ns	250 ns	PT	Surface Mount	2.1 V	12 nC	TO-252AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT PT 1200 V 9 A 45 W Surface Mount TO-252AA
